Eddyfi Reddy – Eddy Current Array

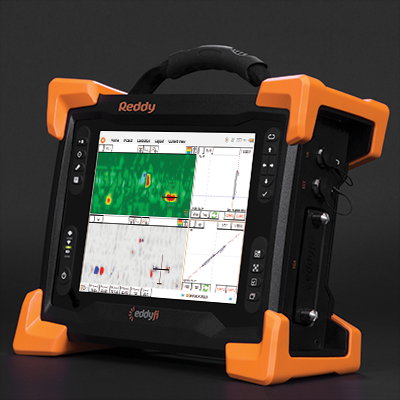

Eddyfi Reddy – Eddy Current ArrayIn Eddyfi’s quest to make eddy current array (ECA) a truly universal and easy-to-use surface inspection method, they introduce the next step in the evolution of surface ECA: Reddy , which is designed to meet the unique in-service needs of the oil & gas, power generation, and aerospace industries.Eddyfi Reddy – Eddy Current ArrayReddy: The most advanced portable surface ECA instrumentPackaged with the latest technology, Reddy and its embedded data analysis software offer the most intuitive user experience, which includes real-time C-scans, a modern, rugged, and large multi-touch interface, as well as many other features the enable fast, high-PoD surface inspections. Meet the first portable instrument that unlockssurface inspection for a vast set of new applications.Webinar Overview:Introducing Reddy and its embedded data analysis software: Magnifi GOSetting up Reddy through its unique and intuitive inspections workflowExploring Reddy capabilities in the context of carbon steel weld inspectionExtensive inspection reporting with ReddyQ&ADetecting and Sizing Cracks in Carbon Steel WeldsThe is based on (TECA™) technology, which was specifically developed for cracking in carbon steel. Not only does it enable measuring surface-breaking crack position and length, but also sizing cracks as deep as 7 mm (0.28 in). Furthermore, the Sharck allows simultaneously scanning the weld cap, toe area, and heat-affected zone for a longitudinal and transverse crack without surface preparation or paint removal. Assessing Corrosion on Ferromagnetic Pipes, Tank Walls and MoreMFL pipescans can adapt to a wide range of diameters (48 mm [1.9 in] to flat surfaces). The magnetic flux leakage option allows you to fully benefit from the Reddy® versatility in order to fast screen large areas for corrosion indications. The array of sensors provides large coverage and high-PoD. Liftoff and thick magnetic walls are now at reach.Detecting and Sizing Cracks in Stainless Steel Weldsadapt to geometry variations in almost every direction, making the probes perfect for examining weld beads, transitions, and Heat-Affected Zone (HAZ). The probe’s design enables detecting surface cracks 0.5–1 mm (0.02–0.04 in) long in welds with minimal surface preparation. The probe’s membrane is extra-tough to better withstand friction.Assessing Corrosion on Aluminum and Stainless Steel Tank Floorscan adapt to a tank floor’s curvature and other geometric features, offering sufficient penetration to scan through thick aluminium/stainless steel (over 6.35 mm [0.25 in] thick). So doing, the solution is capable of detecting and characterizing corrosion-related defects such as pitting and thinning affecting as little as 10% of a plate’s thickness. Detecting and Assessing Stress Corrosion Cracking in Base Metalprobes are the most versatile probes in the industry. Thanks to their multiple built-in topologies and flexible bodies, they can address a variety of applications. I-Flex probes are perfect for detecting Stress-Corrosion Cracking (SCC) in both ferrous and non-ferrous materials. Whether SCC is affecting the integrity of pipelines, pressure vessels, or tanks (on base metal or internal cladding), encoded scans performed with I-Flex probes allow efficient sizing of clusters. Magnifi RThis version of the Magnifi® software allows you to perform advanced analysis of the data acquired with Reddy directly on your computer. Magnifi R offers the same graphical user interface asso any analyst can be up and running in next to no time, with a wider range of larger monitor data layouts than Magnifi GO. This means that Reddy units can be out acquiring data in the field while analysts are hard at work on their computers extracting value from the data. Furthermore, with Magnifi R you can easily plan and set up inspections for several instruments to make the most of your hardware.Drop TestsTesting was performed along the lines of the MIL-STD-810G standard, method 516.6, procedure IV.GENERALChannels32, 64, or 128 (each available with MFL option)MultiplexerSmartMUX™Acquisition/sampling rateUp to 50 000 samples/sDimensions (W × H × D)355 × 288 × 127 mm (14.0 × 11.3 × 5.0 in)Weight6.6 kg (14.5 lb)Display26.4 cm (10.4 in)Non-reflective (AR coating)Anti-fingerprint (oleophobic coating)3 mm (0.12 in), chemically strengthened glass coverOptically bonded LCD and touchscreenPassive blacklight enhancementEncoders2 × axes, quadratureConnectivityGigabit Ethernet, Wi-Fi™, Bluetooth®, HDMI, 3 × USB 2.0 Show More Show Less
