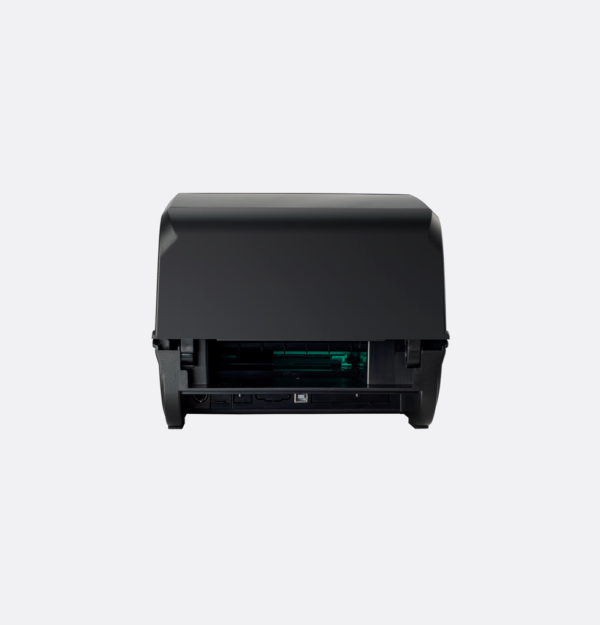

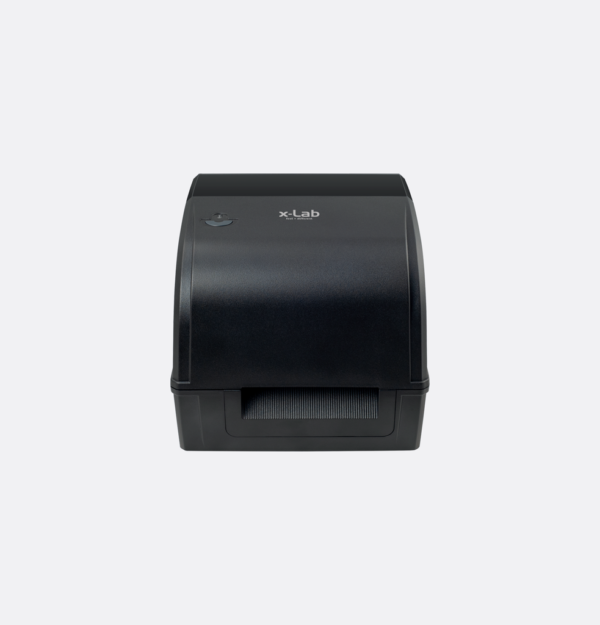

Product Brand xLab Product Name xLab XBLP-426T Thermal Barcode Label & POS Printer Model XBLP-426T Country of Origin USA Ribbon Capacity Mox.300m Processor 32-bit CPU Interface USB LAN Dimensions Weight Reliability Print head life Software Driver SDK 299 mm (D) x 235 mm (W) x 198.3 mm (H) 1D Barcode Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codobar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, Chino POST Media width 25.4-118mm (1.0”-4.6”) Media thickness 0.06-0.254 mm (2.36-10mil) Media core diameter 25.4 76.2 mm (1 “- 3”) Label roll capacity 127 mm (5″) OD (External Diameter) Ribbon width 110 mm Ribbon core inner diameter 25.4 mm (1″) Memory Interface 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb Sensors Standard version: USB Optional :Serial/Lon/WIFI/BluetootIVIF card Or Gap sensor ® Cover opening sensor ® Black mark sensor ® Ribbon sensor Internal fonts 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software Rotation 0°, 90°, 180°, 270° Print head life 30 km Factory Options Built-in Ethernet server (10/100 Mbps); RS-232C (2400-115200 bps) communication interface; Cutter, Peeling machine, Bluetooth module, Win module Dealer Options 0 External paper roll holder and 1 “paper roll Extension board for external paper roll holder Operation 5 – 40°C(41-104°F), Humidity: 25 – 85% non-condensing Print Print Speed 127mm (5″) / s Max. Media Types Continuous, gap, black mark, fan-fold and punched hole Environment Environment -40 – 60°C(-40-140°F), Humidity:10 90% non-condensing Printer Drivers Driver Windows, Linux, Mac Printing Resolutions 203 dpi Print Method Thermal Transfer/Direct Thermal Print Width 104mm (4.09 ) Max print Length 1778 mm (70″) Barcode Functions 2D Barcode PDF-417, Maxicode, DataMotrix, QR code, Aztec Emulation Emulation TSPL, EPL, ZPL, DPL Dimensions Label length 10 -1778 mm(0.39″ – 70″ ) Weight Product Weight 2.55 kg
