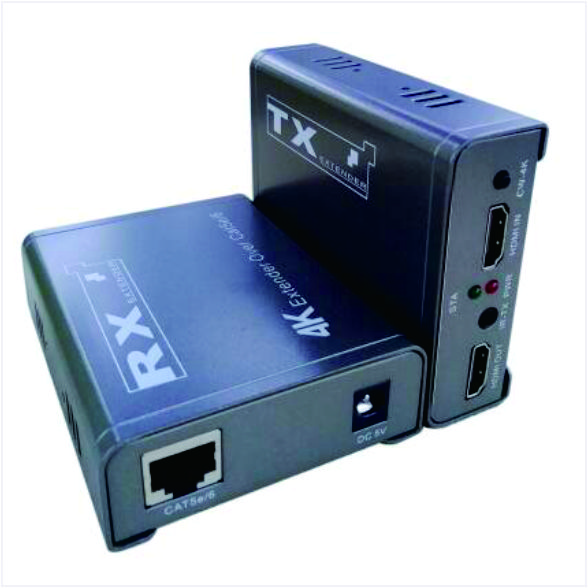

CONVERTER-HDMI EXTENDER OVER CAT5e/6 4K (T/R) 100M

Description This 4K-HDMI extender can transmit HD signal of Blue-Ray DVD Player, PC and other equipment via Cat5e or Cat6 cable (Recommended), support the highest resolution of 4K x 2K, 1080p/4K transmission distance up to 100 meters, support infrared transmission & loop output. The product is table, east to install and highly practical, it can be used in major projects, meeting halls and other places. Support the Max transmit distance : 1080p / 4K up to 100m Support the highest resolution up to 4K x 2K @ 30Hz Support HDMI 1.4 version Support IR transmission Support loop output High compatibility, can auto-match source and dispaly device Built-in automatic adjustment system, make the image smooth, clear and stable Built-in ESD protection system Simple to install, plug and play Parameter Description Video Standard HDMI 1.4; HDCP 1.4 Max. pixel clock 340MHz digital Max. data rate 10.2Gbps Max Resolution 3840×2160@30Hz (4K@30Hz) Connector HDMI-A Impedance 100Ohm IR Interface 3.5mm seat Signal Direction Unidirectional IR frequency 30-60KHz UTP Interface RJ45 Other Power supply Power Adapter : DC 5V/1A Power dissipation Max 3W Temperature Operating : -5oC ~ 70oC Humidity Operating : 5% ~ 90% Dimension 95*73*26mm
