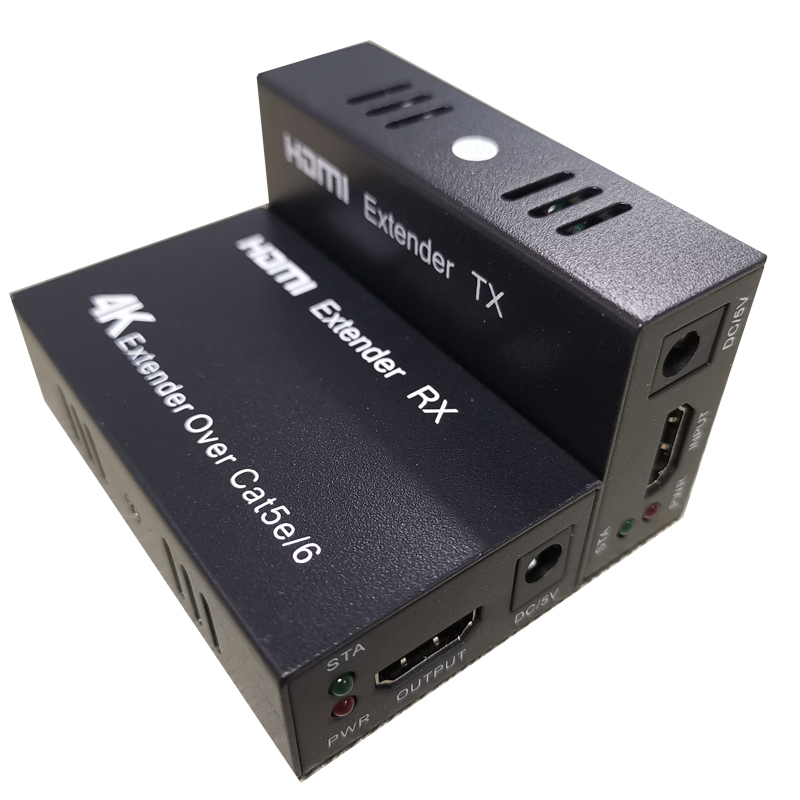

CONVERTER-HDMI EXTENDER OVER CAT 5e/6 4K (T/R) 70M

Description Support max transmit distance : 1080P up to 100M, 4K * 2K@30Hz up to 70M Support highest resolution up to 4K x 2K@30Hz Support HDMI 1.4 Support IR transmission High compatibility, auto match source and display device Built-in automatic adjustment system, make the image smooth, clear and stable Built-in ESD protection system Easy to install, plug & play No loss of quality   Parameter Description Video Standard HDMI 1.4; HDCP 1.4 Max. Bandwidth 340MHz digital Max. baud rate 3×3.4Gbps Max Resolution 3840×2160@30Hz (4K@60Hz) Input Video Signal 0.5~1.5Volts p-p Output DDC Signal 5Volts p-p (TTL) Connector HDMI-A Impedance 100Ohm IR Interface 3.5mm seat Signal Direction Unidirectional IR frequency 30-60KHz UTP Interface RJ45 Other Transmission Distance 1080P: 100m ; 4K : 70m Power supply Power Adapter : DC 5V/1A Power dissipation Max 3W Temperature Operating : -5oC ~ 70oC Humidity Operating : 5% ~ 90% Dimension 81*45*23mm
