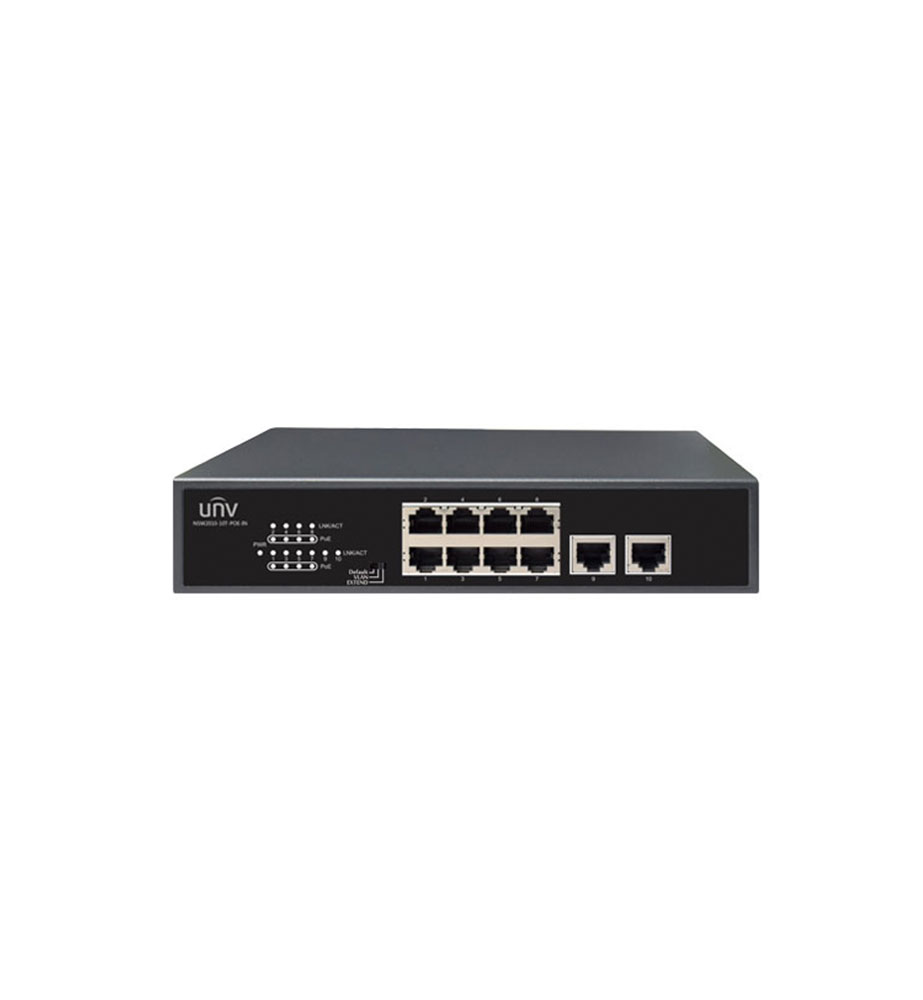

Uniview NSW2010-10T-POE 10 port POE Switch
$25.92
$46.14
Model Description Ports 10×100Mbps network ports (RJ45), including 8 PoE ports Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at Switching capacity 2Gbps Forwarding performance 1.49Mpps Packet Buffer 2Mbit MAC 8K Dimensions (W×D×H) 220mm x 150mm x 44mm(8.7″×5.9″×1.7″) Weight <1.22kg Power supply AC: 100-240V, 50/60Hz PoE 802.3at/af Max. PoE Power Max capacity: 120W Max capacity for single port: 30W Cooling Fans 0 Mean Time Between Failure(MTBF) >50000 hours Operating temperature 0°C-40°C (32°F-104°F) Operating humidity 10%~90% (noncondensing) Storage humidity 5%~90% (noncondensing) Indicator PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps Working Mode Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters.EXTEND(Surveillance mode): Transmission distance up to 250 meters.
