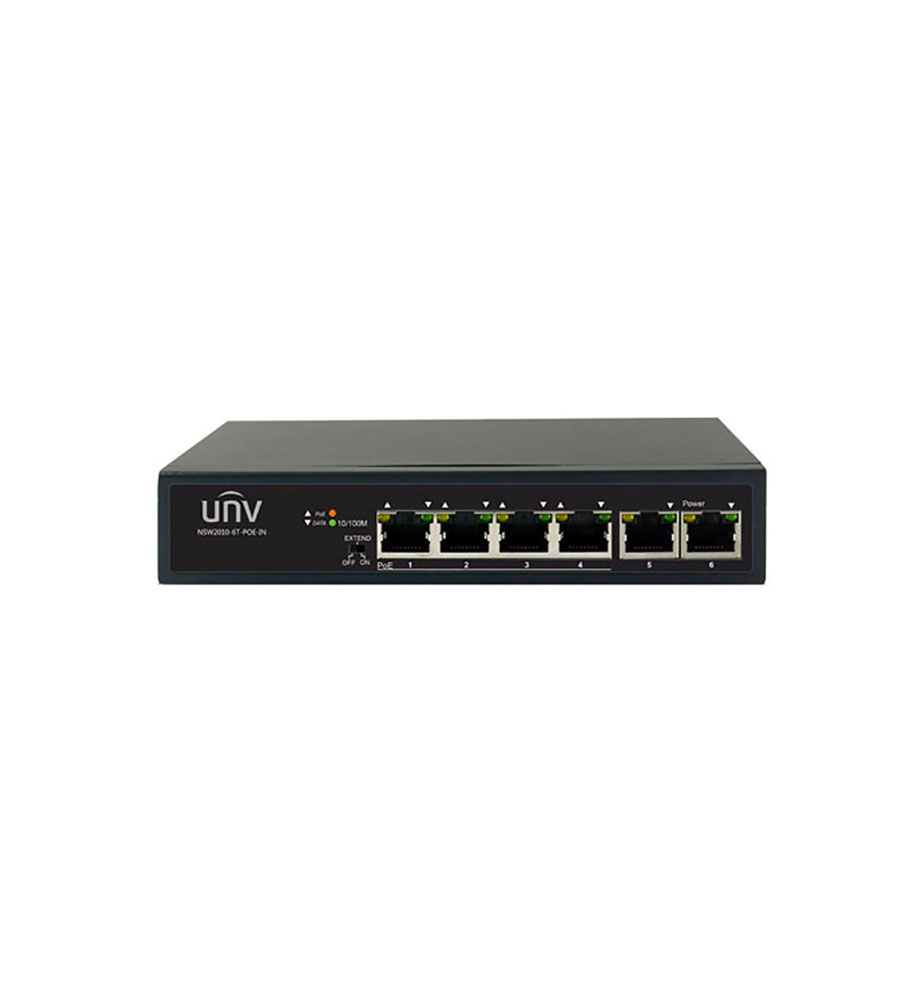

Model NSW2010-6T-POE-IN NSW2010-10T-POE-IN NSW2010-16T2GC-POE-IN NSW2010-24T2GC-POE-IN Ports 6×100Mbps network ports (RJ45), including 4 PoE ports 10×100Mbps network ports (RJ45), including 8 PoE ports 16×100Mbps PoE ports (RJ45) 2×1000Mbps Combo ports 24×100Mbps PoE ports (RJ45) 2×1000Mbps Combo ports Standards IEEE802.3,IEEE802.3u, IEEE802.3az,IEEE802.3x, IEEE802.3af,IEEE802.3at IEEE802.3,IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x,IEEE802.3af, IEEE802.3at,IEEE802.3az Switching capacity 1.2Gbps 2Gbps 7.2Gbps 8.8Gbps Forwarding performance 0.90Mpps 1.49Mpps 5.36Mpps 6.55Mpps Packet Buffer 768Kbit 2Mbit 4M bit 4Mbit MAC 2K 8K 16K 16K Dimensions (W×D×H) 160mm x 93mm x 32mm (6.3″×3.7″×1.3″) 220mm x 150mm x 44mm(8.7″×5.9″×1.7″) 440mm x 207mm x 44mm(17.3″×8.1″×1.7″) 440mm x 280mm x 4416mm(17.3″×11″×1.7″) Weight <0.6kg <1.22kg <4.2kg <4.2kg Power supply AC: 100-240V, 50/60Hz PoE 802.3at/af Max. PoE Power Max capacity: 65W Max capacity for single port: 30W Max capacity: 120W Max capacity for single port: 30W Max capacity: 250W Max capacity for single port: 30W Max capacity: 370W Max capacity for single port: 30W Cooling Fans 0 0 2 2 Mean Time Between Failure (MTBF) >50000 hours Operating temperature 0°C-40°C (32°F-104°F) Operating humidity 10%～90% (noncondensing) Storage temperature 5%～90% (noncondensing) Indicator PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps Working Mode Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters. Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters.
