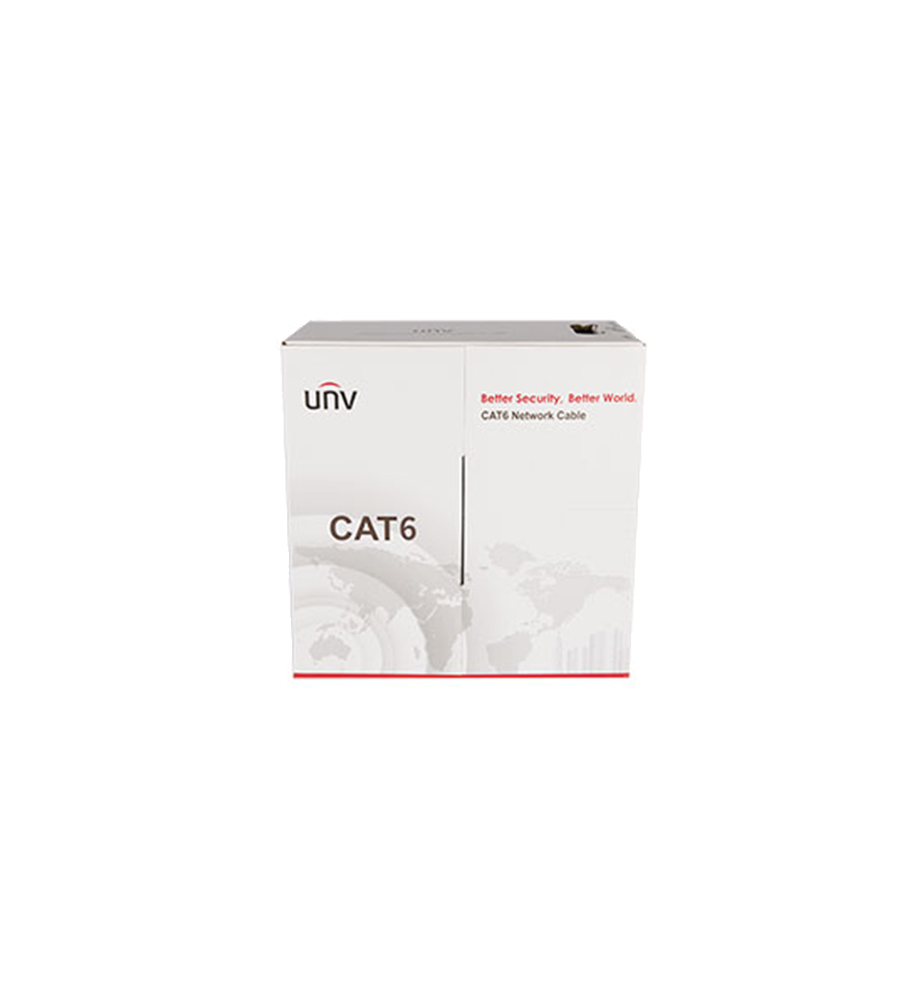

Uniview UTP CAT 6 Cable 305m

Content of Data Sheet Product model CAB-LC3100A-IN Product specification HSYV-6 4×2×0.57 Test Standard ISO/IEC 11801,TIA/EIA 568B.2 Conductor Material Solid-Bare Copper AWG 23 Nom.O.D.(mm) 0.57±0.005 mm DC resistance ≤95 Ω/km Insulation Material HDPE Thickness 0.2±0.02 mm Diameter 1.02±0.05 mm Color Blue/White- Blue Green/White-Green Electrical Characteristics: Frequency Characteristic impedance RL ATT NEXT MHz ohm ≥dB/100m ≤dB/100m ≥dB/100m 1 100±15 20.0 2.0 74.3 4 100±15 23.0 3.8 65.3 10 100±15 25.0 6.0 59.3 16 100±15 25.0 7.6 56.2 20 100±15 25.0 8.5 54.8 31.25 100±15 23.6 10.7 51.9 62.5 100±15 21.5 15.4 47.4 100 100±15 20.1 19.8 44.3 155 100±15 18.9 24.7 41.7 200 100±15 18.0 29.0 39.8 250 100±15 17.3 32.8 38.3 Frequency FEXT PS NEXT PS FEXT Phase delay MHz ≥dB/100m ≥dB/100m ≥dB/100m ≤ns/100m 1 63.8 72.3 64.8 570.0 4 51.7 63.3 57.7 552.0 10 43.8 57.3 44.8 545.4 16 39.7 54.3 40.7 543.0 20 37.7 52.8 38.7 542.0 31.25 33.9 49.9 34.9 540.4 62.5 27.8 45.4 28.8 538.6 100 23.8 42.3 24.8 537.4 150 20.2 39.4 20.9 536.0 200 17.7 37.8 18.7 536.0 250 15.8 36.3 16.8 536.0 Orange /White-Orange Brown/White-Brown Pitch Offset pitch ≤20 mm Cable pitch ≤120 mm Sheath Material PVC(complies RoHS/REAC) External O.D. 6.2±0.3 mm Color Blue(RAL5015) Tensile strength >13.5 Mpa Thickness 0.6±0.05 mm Surface Printing Letter height 3.0±0.3 mm Color Black Print error & Space 1±0.005 m Case number Yes Packing Packing Carton Once packing dimension 420mm*205mm*420mm Twice packing dimension 450mm*440mm*445mm Twice packing quantity 2 cases Packing length 305±1m Rip-cord Yes Crossing backbone Yes Ambient temperature -20℃～60℃
