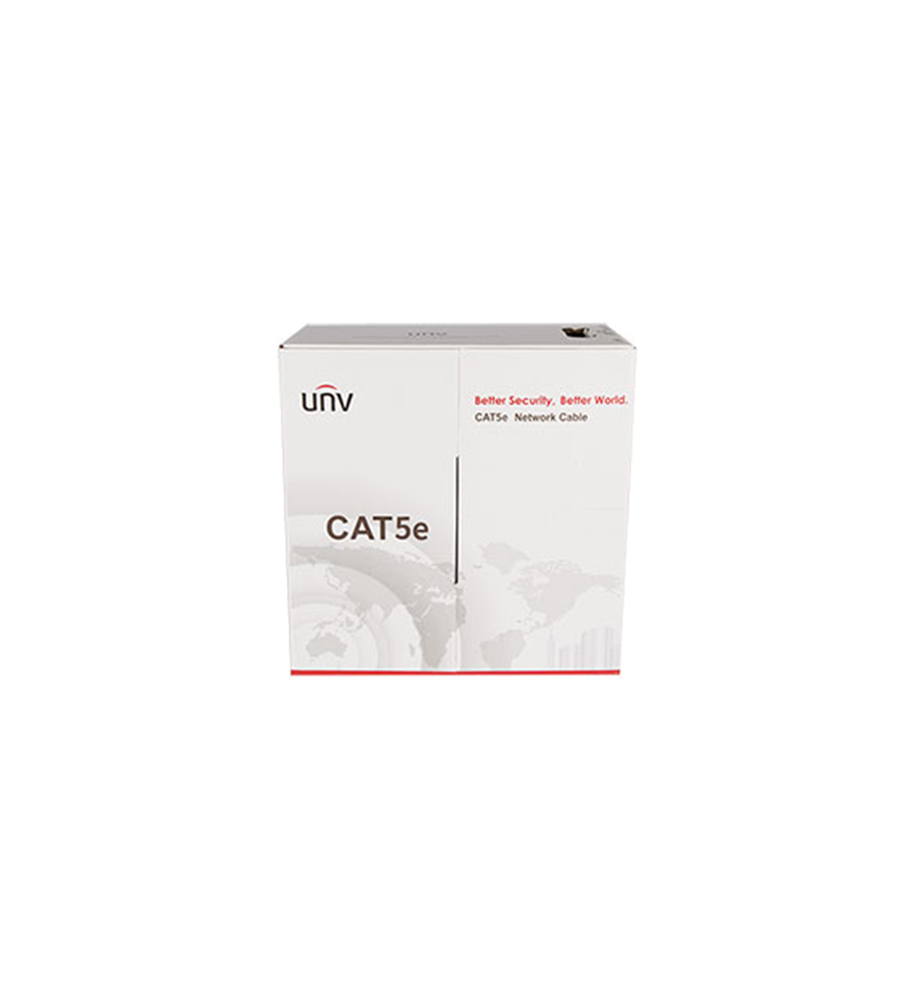

Uniview UTP CAT 5E Cable 305m

Content of Data Sheet Product model CAB-LC2100A-IN Product specification HSYV-5e 4×2×0.50 Test Standard ISO/IEC 11801,TIA/EIA 568B.2 Conductor Material Solid-Bare Copper AWG 24 Nom.O.D.(mm) 0.5±0.005 mm DC resistance ≤95 Ω/km Insulation Material HDPE Thickness 0.2±0.02 mm Diameter 0.9±0.05 mm Color Blue/White- Blue Green/White-Green Orange /White-Orange Brown/White-Brown Pitch Offset pitch ≤25 mm Electrical Characteristics: Frequency Characteristic impedance RL ATT NEXT MHz ohm ≥dB/100m ≤dB/100m ≥dB/100m 1 100±15 20.0 2.0 65.3 4 100±15 23.0 4.1 56.3 10 100±15 25.0 6.5 50.3 16 100±15 25.0 8.2 47.3 20 100±15 25.0 9.3 45.8 31.25 100±15 23.6 11.6 42.9 62.5 100±15 21.5 17.0 38.4 100 100±15 20.1 22.0 35.3 Frequency FEXT PS NEXT PS FEXT Phase delay MHz ≥dB/100m ≥dB/100m ≥dB/100m ≤ns/100m 1 63.8 62.3 60.8 570.0 4 51.7 53.3 48.7 552.0 10 43.8 47.3 40.8 545.4 16 39.7 44.2 36.7 543.0 20 37.7 42.8 34.7 542.0 31.25 33.9 39.9 30.9 540.4 62.5 27.8 35.4 24.8 538.6 100 23.8 32.3 20.8 537.4 Cable pitch ≤140 mm Sheath Material PVC(complies RoHS/REACH) External O.D. 5.1±0.3 mm Color Gray(RAL7046) Tensile strength >13.5 Mpa Thickness 0.55±0.05 mm Surface Printing Letter height 3.0±0.3 mm Color Black Print error & Space 1±0.005 m Case number Yes Packing Packing Carton Once packing dimension 360mm*205mm*360mm Twice packing dimension 460mm*370mm*370mm Twice packing quantity 2 cases Packing length 305±1 m Rip-cord Yes Ambient temperature -20℃～60℃
