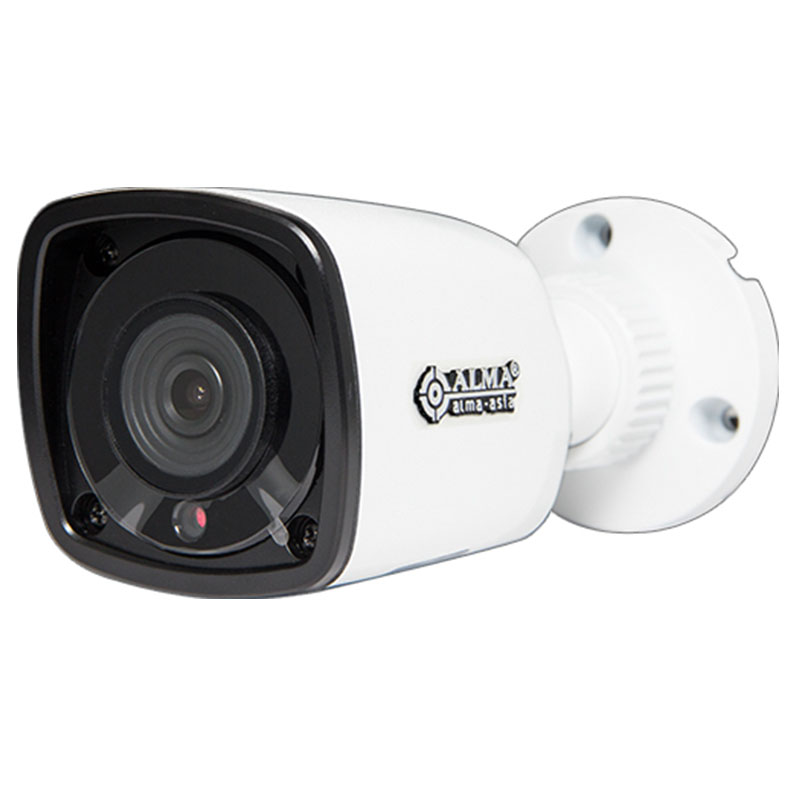

CMR IP-IR3S24 3.0MP 3.6MM

Description Video & Audio Audio In N/A Video ROI Each ROI to be configured separately Recording Recording Resolution 3MP (2048 x 1536 ), 1080P (1920 x 1080 ), 720P (1280 x 720 ), D1, CIF, 480 x 240 Record Rate 60Hz : 3MP (1 ~ 30fps) / 1080P (1 ~ 30fps) / 720P (1 ~ 30fps ); 50Hz : 3MP (1 ~ 25fps) / 1080P (1 ~ 25fps) / 720P (1 ~ 25fps ) Bit Rate 128 Kbps ~ 6 Mbps Encode VBR / CBR Quality 5 Levels VBR, Freely adjustable under CBR Camera Image Sensor 1/2.8″ 3MP Aptina Sensor Effective Pixels 2048 x 1536 Electronic Shutter 1/25s ~ 1/100,000s Mini. Illumination 0.07 lux @F1.2,AGC ON; 0 lux with IR Camera Features IR LEDs 21 IR IR LEDs Distance 33 ~ 66ft (10~20m) Day / Night ICR auto switch Noise Reduction 3D Noise Reduction WDR Digital-WDR Lens Focal Lens 3.6 mm @ F1.6, horizontal field of view：85.8° Auxiliary Interface Alarm Motion Alarm Network Ethernet RJ45 Smart Phone iPhone, Android General Power Supply DC 12V / PoE Power Consumption < 3W (ICR OFF) / <5W (ICR ON) Working Environment -4℉ ~ 122℉ (-20℃ ~ 50℃)，10% ~90% Humidity Protection IP66 Dimensions 2.8″ x 6.1″ (Φ 70 × 156mm) Weight 0.77Lbs (350g)
