$55.88
$105.62

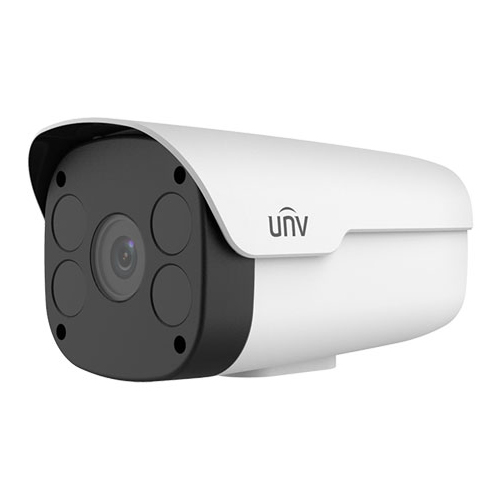

Description Optics Day/night functionality Smart IR, up to 60m (197ft) IR distance Optical glass window with higher light transmittance IR anti-reflection window to increase the infrared transmittance 2D/3D DNR (Digital Noise Reduction) Compression Ultra 265, H.265, H.264 ROI (Region of Interest) Network ONVIF Conformance Structure Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F) Wide voltage range of ±25% IP67 Model IPC2C22LR6-PF60-E Camera Sensor 1/2.7″, 2.0 megapixel, progressive scan, CMOS Lens
[email protected] [email protected] DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4.0 60 24 12 6 6.0 90 36 18 9 Angle of View (H) 4mm: 86.5° 6mm: 55.4° Angle of View (V) 4mm: 44.1° 6mm: 30.2° Angle of View (O) 4mm: 106.4° 6mm: 68.1° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on Digital noise reduction 2D/3D DNR Day/Night IR-cut filter with auto switch (ICR) S/N >52dB IR Range Up to 60m (197ft) IR range WDR DWDR Video Video Compression Ultra 265, H.265, H.264 H.264 code profile Baseline profile, Main Profile Frame Rate Main Stream: 1080P (1920*1080), Max 25fps; Sub Stream: 4CIF (704*576), Max 25fps; Third Stream: CIF (352*288), Max 25fps HLC Supported BLC Supported OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 2 areas Motion Detection Up to 4 areas Network Protocols IPv4, TCP, UDP, RTP, RTSP, DNS, HTTP, DHCP, DDNS, NTP, UPnP Compatible Integration ONVIF (Profile S, Profile T), API Interface Network 10/100M Base-TX Ethernet General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5W Dimensions (L × W × H) 169.4 × 98.1 × 92.0mm (6.7″ × 3.9″ × 3.6″) Weight 0.38kg (0.84lb) Working Environment -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Ingress Protection IP67
