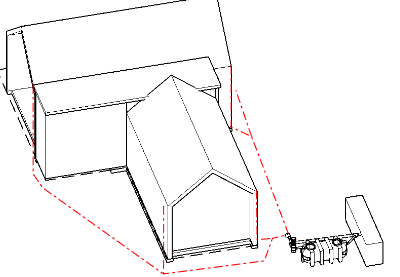

Description Our FREE Below Ground Non-Potable Rainwater Harvesting System 1000 USG Overflow Design This below ground non-potable rainwater harvesting system is designed as a secondary source of water for non-potable purposes, such as toilets, laundry, and irrigation. With a backup water source from domestic potable water if the rainwater tank is empty. The system will provide water for water uses tier: R3 – non-potable domestic. Roof The system will be harvesting rain from one building. The roof is provided by others and should be suitable for intended use. Gutter, Downpipes, and Conveyance Piping The gutters, downpipes, and conveyance piping are sized based on specifications from the designs. They are provided by others and should be suitable for intended use. Pre-Filter The system will require one (1) pre-filter. This pre-filter operates as both a first flush diverter and pre-filter, with a filter mesh size of 320 microns. The full cross-section (pipe diameter) of the rainwater drainage system remains continuously open, and there are no reductions in the cross-section of this appliance in which dirt or water can collect. Rainwater Tank/Cistern This below ground non-potable system will provide a total of 1000 USG of rainwater storage, with a total of one (1) below-ground tank(s), made of polyethylene. Each tank is 1000 USG. The rainwater tank is designed to provide safe storage of rainwater, which improves water quality because of its design and function. The calming inlet prevents agitation of settled fine dust, the skimming overflow removes floating particles, and the floating filter ensures water is drawn into the pump from approximately 150 mm (6.0″) below the surface of the water. Water Pumping and Treatment System Cleanflo determined the water demand to be 8 GPM @ 60 PSI. This will be pumped by a booster pump. The treatment will be three stages to ensure water is safe to use. Stage one is a sediment filter of 5 microns. Stage two is a 10 micron carbon filter. Stage three is ultraviolet sanitation (UV) system. Water Quality and Treatment Cleanflo designed this system to produce water that is safe for CSA B805 R3 uses; namely, non-potable domestic.
