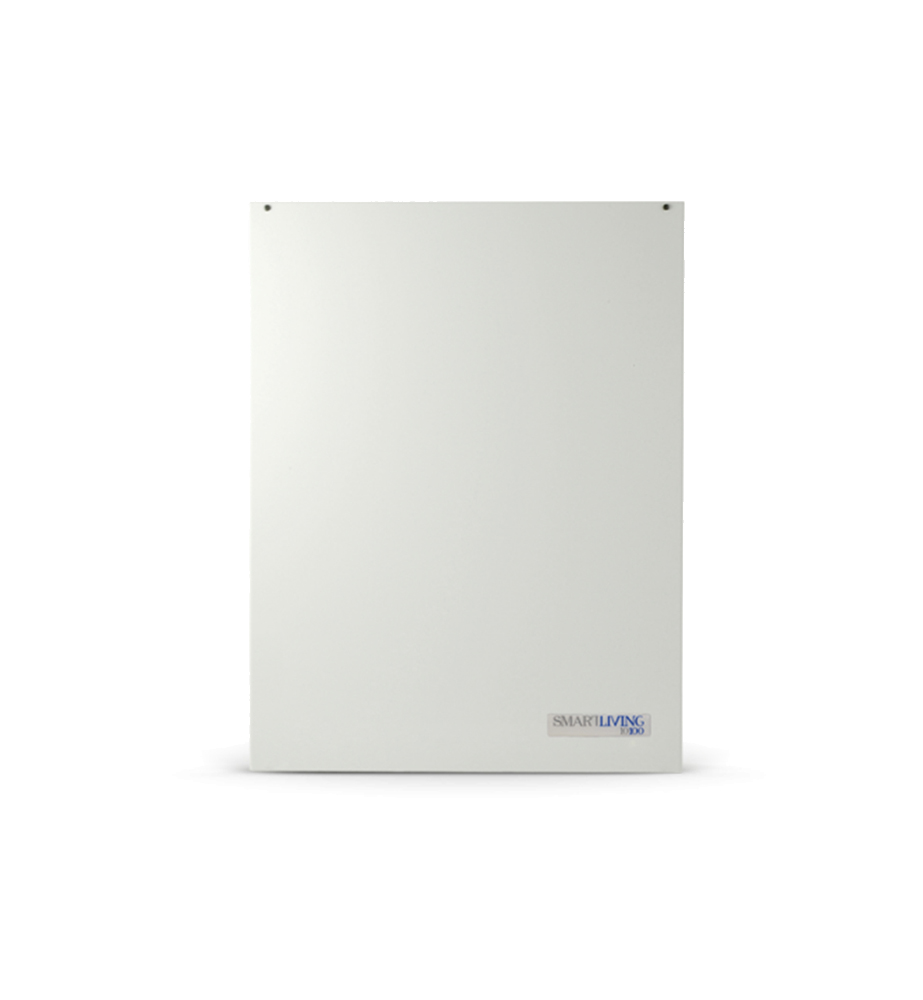

Main features of SmartLiving Systems SMARTLIVING 505 515 1050 1050/G3 1050L 1050L/G3 10100L 10100L/G3 Hardware features Number of terminals supported by the system 5 15 50 100 Number of terminals available for mapping and relocation 5 15 50 100 Terminals on motherboard (configurable as inputs or outputs) – 5 (0) 5 (0) 10 (5) 10 (5) Programmable relay on motherboard 1 1 1 1 Number of programmable open-collector outputs on motherboard 2 (150mA) 2 (500mA) Number of partitions available 5 10 15 Relay and power-diffusion board (accessory item) – – – Yes IP Connectivity management (using SmartLAN) Yes Digital communicator with SIA-IP protocol (options SmartLAN/SI, SmartLAN/G, Nexus/G) Yes Flex5 expansion board housing – – – Yes GSM device housing Yes Power supply 1.2A 1.2A 3A 5A RS232 Port Yes Power charge monitored by temperature probe (ProbeTh accessory item) Yes Battery test circuit Yes Control-panel firmware upgrading capability Yes Peripheral-firmware upgrading capability via control panel Yes Enclosure Metal Battery housing 7Ah 2x17Ah Dimensions (HxWxD) 305x220x80 mm 500x380x95 mm Weight without battery 2.5 Kg 2.5 Kg 2.2 Kg 5.1 Kg 5.3 Kg I-Bus devices I-BUS peripherals enrolled automatically Yes Number of Joy, nCode/G and Concept/G keypads supported 5 10 15 Number of nBy readers supported 10 20 30 Number of Flex5 5-terminal Expansions supported 4 10 20 40 Ivy-B Sounderflasher 10 Air2 Wireless Transceivers supported (with automatic channel search) 4 10 20 30 Nexus GSM/GPRS module 1 Air2 wireless devices MC100 and MC200 magnetic contacts, IR100 and XIR200W infrared detectors, XDT200W and DT200T dual tech detectors, FD100 smoke detector 5 15 50 100 Wireless keyfobs (KF100) 50 100 150 Authentication Installer access codes 2 Number of user-access codes (can be controlled by timers) 30 50 100 Number of nKey Tags or nCards card (can be controlled by timers) 50 100 150 Telephone communications Telephone contact numbers 15 Telephone line check Yes Automatic voice dialer (SmartLogos30M option, refer to Voice functions) Yes Integrated automatic digital-dialer Yes Integrated remote programming modem Yes Input terminals Auto-learning of zone-balance • Yes Zone doubling (each input manages 2 zones) Yes Input terminals for shock and rollerblind sensors on control panel 2 Number of input terminals for shock and rollerblind sensors on keypad 2 on Alien, 2 on Joy, 1 on Concept Number of input terminals for shock and rollerblind sensors on expansion boards configurable as inputs or outputs 4 Programmable input-zone thresholds Yes Input threshold trimmer • Yes Operating principles and features of Smartliving system Voice functions on motherboard Keypad-to-keypad Intercom (Joy/MAX keypads) Yes Remote Listen-in function with choice of location (Joy/MAX keypads) Yes Additional features through optional devices Advanced voice functions with SmartLogos30M board Yes GSM functions with Nexus module Yes GPRS functions and SIA-IP connectivity with Nexus/G module Yes TCP-IP connectivity with SmartLAN/SI board Yes TCP-IP connectivity and web-server function with SmartLAN/G board Yes Remote control from mobile via App with AlienMobile and AlienMobile Yes Cloud functions with Inim Cloud service Yes Other features Week-to-week timers (each with 15 ‘exception’ periods) for automatic arming and enablement 10 20 Thermostats with manual, dayly, weekly and antifreeze management (from 3.00 version) 5 10 15 Programmable timer-controlled events (4.00 version only) 10 30 50 Automatic daylight saving time Yes Programmable scenarios (arming configurations) 30 Shortcuts (one-stroke actions) 38 Programmable icons 50 Number of trigger events 410 480 890 1480 Rolling event buffer 500 1000 Events log filter Yes Saves compact event details Yes Manages shortcuts on function keys (12) and on numeric keys (10) on Joy and Concept keypads Yes Shortcuts on LEDs (4) on nBy Readers Yes Manages Events-Actions matrix Yes Generates “start of” event-related actions Yes Generates “end of” event-related actions Yes Zone test from keypad Yes Programming software runs under Windows Yes
