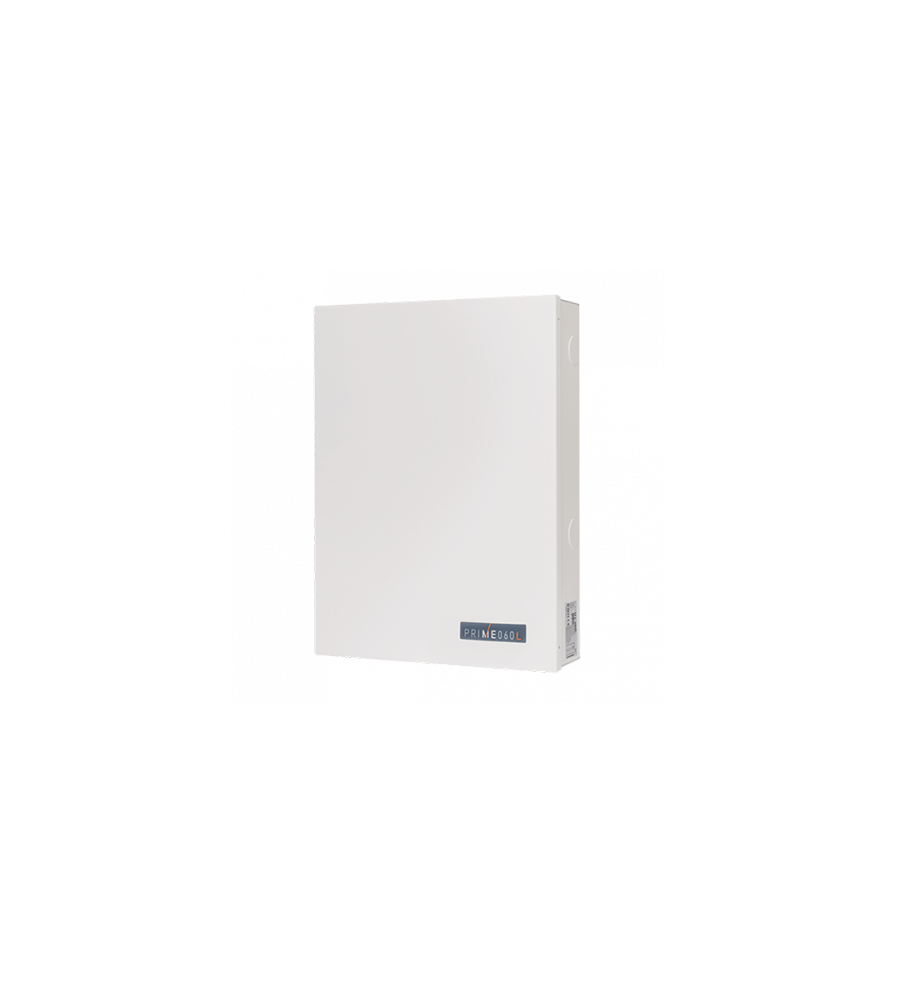

Table of main features of Prime systems PRIME 60 S / 60 L 120 L 240 L Hardware features Number of terminals supported by the system Number of terminals available for mapping and relocation (3 note) 60* 120* 240* Terminals on motherboard (configurable as inputs or outputs) 10 (10) Programmable relay on motherboard Yes Number of programmable open-collector outputs on motherboard 2 (150mA) 2 (500mA) 2 Programmable 12 V outputs 2 (AUX 1, AUX2) Number of partitions available 10 20 30 IP Connectivity management (usingSmartLAN) Yes Digital communicator with SIA-IP protocol (options SmartLAN/SI, SmartLAN/G,Nexus/G) Yes Flex5 expansion board housing Yes NEXUS for device board housing Yes Power supply: maximum current for the range 2,5 A 5 A 5 A Power supply: maximum current for battery recharging 1.2 A 1.2 A 1.2 A USB Port Yes Power charge monitored by temperature probe (ProbeTh accessory item) Yes Battery test circuit Yes AlienMobile and AlienMobile user app for smartphone or tablet (Android / iOS) Yes InimTech Security installer app for smartphones or tablets (Android / iOS) Yes Cloud functions with Inim Cloud services Yes Panel firmware reprogramming Yes Battery housing Yes Dimensions mm (HxWxD) 275x374x86 375x466x92 375x466x92 Weight without battery 3.2 Kg 5 Kg 5 Kg I-Bus devices I-BUS peripherals enrolled automatically Yes Number of Keyboards Joy, Concept, Alien / S, Alien / G, Air HG supported (note 1) 10 15 15 Number of nBy readers supported 30 Number of Flex5 5-terminal Expansions supported 40 Ivy-B Sounderflasher 10 Air2 – BS200 transceivers (with automatic channel search) 20 30 30 NEXUS Communicator 1 Air2 wireless devices Magnetic contacts MC200, MC100, MC300, IR100 and XIR200W infrared detectors, XDT200W and DT200T dual tech detectors, FD100 smoke detector (note 3) 60 120 240 ARIA / W wireless keyboard for each BS200 (note 3) 4 HEDERA wireless sirens for each BS200 4 Wireless keyfobs (KF100, KF-Pebble, KF-Ergo) (note 2) 100 150 150 Authentication Installer access codes 2 Number of user-access codes (can be controlled by timers) 50 100 100 Number of nKey Tags or nCards card (can be controlled by timers) (note 2) 100 150 150 Telephone communications Telephone contact numbers 15 Integrated Cloud channel Yes Telephone line check Yes Automatic voice dialer (SmartLogos30M option, refer to Voice functions) Yes Integrated automatic digital communicator (ContactID, SIA-IP, pulses) Yes Input terminals (zone) Auto-learning of zone-balance • Yes Zone doubling (each input manages 2 zones) Yes Input terminals for shock and rollerblind ensors on control panel 2 Number of input terminals for shock and rollerblind sensors on keypad 2 on Joy and Aria/HG, 1 on Concept Number of input terminals for shock and rollerblind sensors on expansion boards configurable as inputs or outputs 4 Programmable input-zone thresholds Yes Input threshold trimmer • Yes Additional features through optional devices Advanced voice functions with SmartLogos30M board Yes GSM functions with Nexus module Yes GPRS functions and SIA-IP connectivity with Nexus/G module Yes Integrated cloud channel YesWeb-server, e-mail, ONVIF cameras, KNX standard over IP with PrimeLAN board Yes Other features Week-to-week timers (each with 15 ‘exception’ periods) for automatic arming and enablement 20 40 Thermostats with manual, dayly, weekly and antifreeze management (from 3.00 version) 10 15 15 Programmable timer-controlled events (4.00 version only) 30 50 60 Management of summer / winter time Si Si Si Automatic date / time update with NTP Yes Programmable entry scenarios (status of areas and outputs status) 30 50 Shortcuts (one-stroke actions) 38 Programmable icons 80 Number of trigger events 2830 Events that can be stored in the register 4000 Events log filter Yes Manages shortcuts on function keys (12) and on numeric keys (10) on Joy and Concept keypads Yes Shortcuts on LEDs (4) on nBy Readers Yes Manages Events-Actions matrix Yes Generates “start of” event-related actions Yes Generates “end of” event-related actions Yes Zone test from keypad Yes Programming software runs under Windows Yes Certifications 60 S 120 L 240 L EN50131-3 Grade 3 EN50131-6 Grade 3 – AT56
