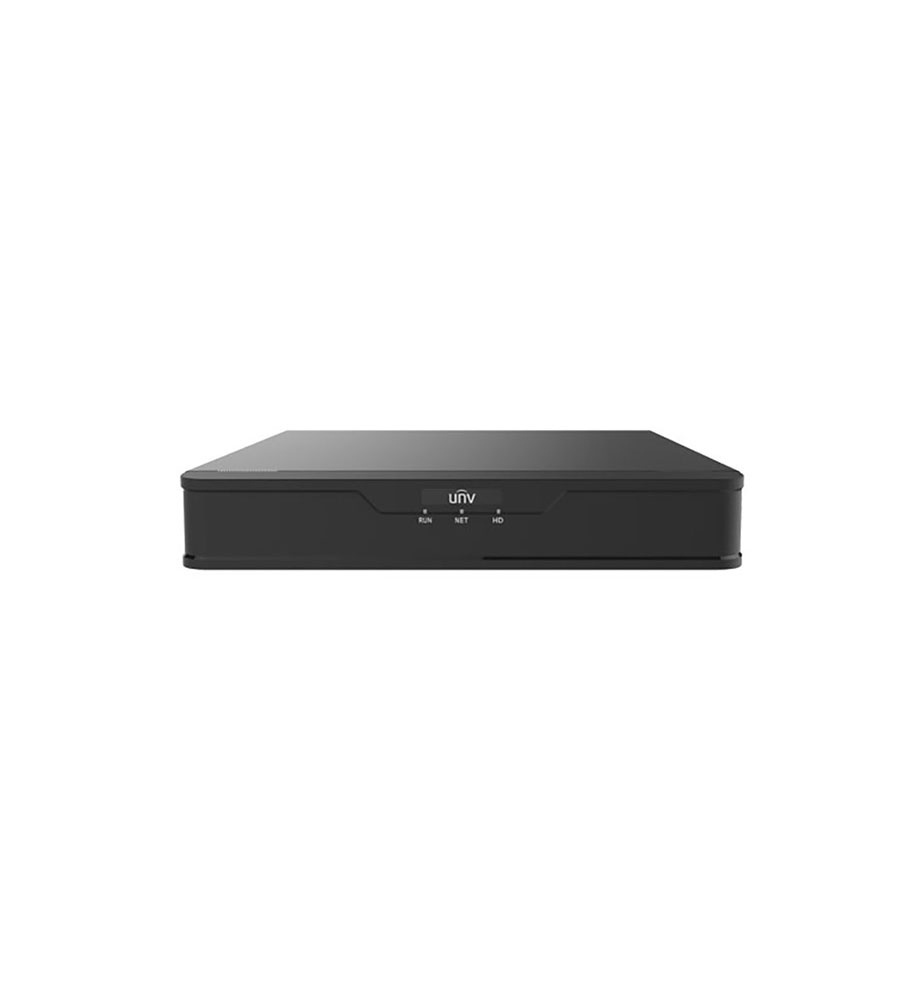

Model NVR301-08X-P8 Video/Audio Input IP Video Input 8-ch Two-way Audio Input 1-ch, RCA Network Incoming Bandwidth 64Mbps Outgoing Bandwidth 64Mbps Remote Users 128 Protocols P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output HDMI/VGA Output HDMI: 3840×2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Synchronous Playback 8-ch Corridor Mode Screen 3/4/5/7/9 Decoding Decoding format Ultra 265/H.265/H.264 Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30 Hard Disk SATA 1 SATA interface Capacity up to 10TB for each disk External Interface Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface USB Interface Rear panel: 1 x USB2.0,1 x USB3.0 PoE Interface 8 independent 100 Mbps PoE network interfaces Max Power Max 30W for single port Max 108W in total (13.5W for each) Supported Standard IEEE 802.3at, IEEE 802.3af General Power Supply 52V DC Power Consumption: ≤8 W (without HDD) Working Environment -10°C ~ 55°C ( 14°F ~ 131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2″×9.4″×1.9 “) Weight (without HDD) 1kg (2.20 lb)
