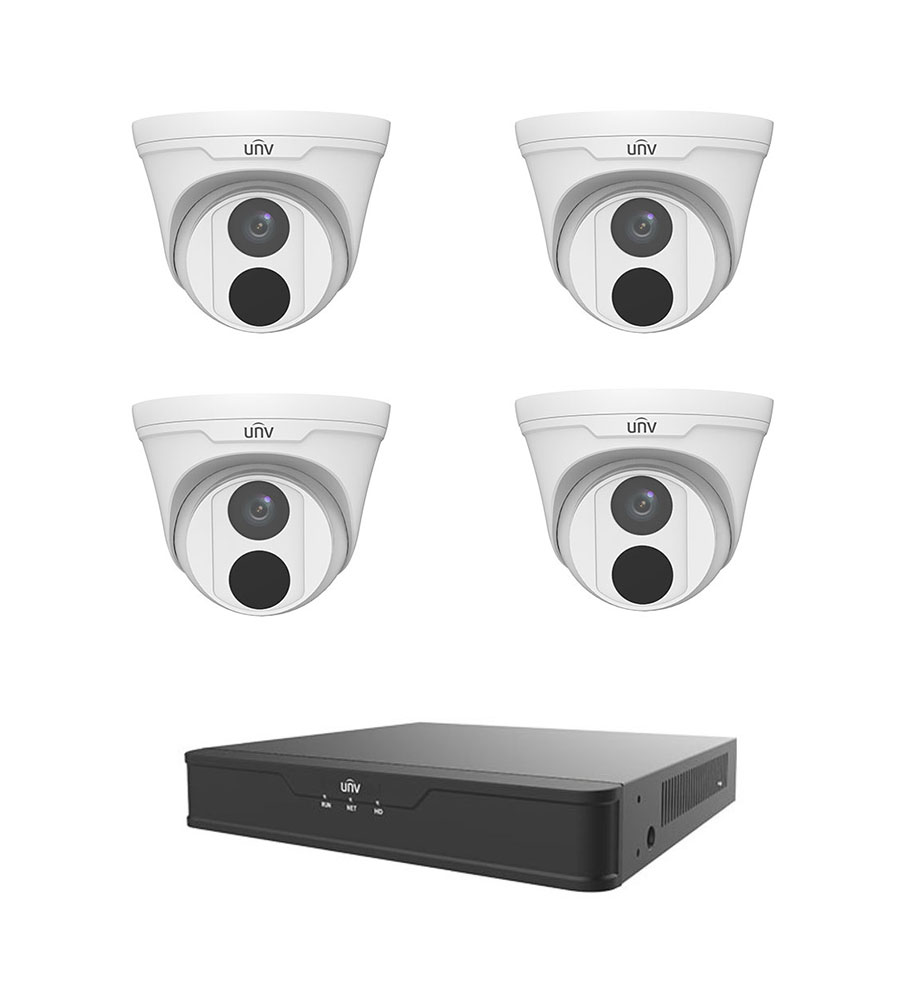

Uniview NVR301-04S3-P4 4 Channel NVR Kit with 4 x 2MP Dome Cameras 2TB Drive

Model NVR301-04S3-P4 NVR301-08S3-P8 NVR301-16S3-P8 Video/Audio Input IP Video Input 4-ch 8-ch 16-ch Network Incoming Bandwidth 64Mbps Outgoing Bandwidth 48Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP Video/Audio Output HDMI/VGA Output HDMI: 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, RCA Audio Compression G.711A, G.711U Synchronous Playback 4-ch 8-ch 16-ch Liveview display 1/4 1/4/6/8/9 1/4/6/8/9/16 Corridor Mode Screen 3/4 3/4/5/7/9 3/4/5/7/9/10/12/16 Snapshot FTP/Schedule/Event Snapshot 1-ch snapshot, up to D1 resolution Decoding Decoding format Ultra 265/H.265/H.264 Live view/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1 Hard Disk SATA 1 SATA interfaces Capacity Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) Smart VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) VCA Search Face Search, Behavior Search Smart Intrusion Prevention (SIP), UMD by Camera Total 4-ch General Alarm General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal External Interface Network Interface 1 RJ-45 10M/100Mself-adaptive Ethernet Interface USB Interface Rear panel: 2 x USB2.0 RS232 NA RS485 NA Alarm In NA Alarm Out NA PoE Interface 4 RJ-45 10M/100Mself-adaptive Ethernet Interface 8 RJ-45 10M/100Mself-adaptive Ethernet Interface Max Power Max 30W for single port Max 54W in total Max 30W for single port Max 75W in total Supported Standard IEEE 802.3at, IEEE 802.3af General Power Supply 48V DC Power Consumption: ≤9 W (without HDD) 52V DC Power Consumption: ≤9 W (without HDD) Working Environment -10°C~ 55°C ( 14°F~ 131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 260mm ×240mm × 46 mm (10.2″ × 9.4″ ×1.8″) Weight (without HDD) ≤1.1kg (2.43lb) Certification Certification CE, FCC, UL, RoHS, WEEE CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 FCC Part15 Subpart B, ANSI C63.4   IPC3612LB-ADF28K-G IPC3612LB-ADF40K-G Camera Sensor 1/2.8″, 2.0 megapixel, progressive scan, CMOS Lens [email protected] [email protected] DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 43.4 17.4 8.7 4.3 4.0 62.1 24.8 12.4 6.2 Angle of view (H) 106.7° 87.5° Angle of View (V) 57.1° 46.3° Angle of View (O) 115.7° 92.4° Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360° Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Digital Noise Reduction 2D/3D DNR S/N >52dB IR Range Up to 30m (98ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR DWDR Video Video Compression Ultra 265, H.265, H.264 H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Supported Flip Normal/Vertical/Horizontal/180° Dewarping N/A HLC Supported BLC Supported Network Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP Compatible Integration API Client EZStation EZView EZLive Web Browser Plug-in free live view: Chorme 57.0 , Firefox 58.0 , Edge 16 Interface Network 10/100M Base-TX Ethernet Certifications Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W Dimensions (Ø x H) Φ118 x 95mm (Φ4.6” x 3.8”) Net Weight 0.29kg (0.64lb) Material Metal Plastic Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 4KV Ingress Protection IP67 Reset Button N/A
