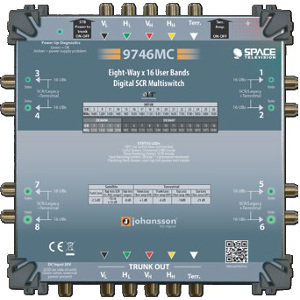

4 satellite 1 Terrestrial inputs 8 outputs with 16 User Band per output • Up to 8 UBs per SCR Output • Auto Detection for SCR and Legacy Mode • Support all SCR standards • Compatible with all Legacy STBs • Amplified / Bypass terrestrial diplexer • Soft power-up mode for Legacy • Power diagnostics for trunk power EACH 974XMC UNIT HAS: • 4 cascadable LNB inputs for a universal Quattro/Quad LNB • 1 terrestrial trunk • 4, 8 or 16 SCR/Legacy outputs (9744MC, 9746MC or 9748MC) • 1 DC input EACH OUTPUT CAN SUPPORT A WIDE VARIETY OF SATELLITE RECEIVERS: • In Legacy mode, the 974xMC outputs can be used as a standard multiswitch • In SCR mode, each 974xMC output supports up to 16UBs with all versions of the single cable technology • This includes OLT, SCR, CSS, EN50494, EN50607, and newer versions AS ALL OUTPUTS ARE INDEPENDENT, THE INSTALLATION CAN BE A MIX OF LEGACY AND SCR CONNECTIONS THE OUTPUTS WILL AUTOMATICALLY DETECT THE APPROPRIATE MODE (SCR OR LEGACY) The terrestrial path allows support of any service operating below 1 GHz, including terrestrial cable and DOCSIS reception • The terrestrial path can be amplified or bypass • via user selected switch • LTE 4G ready – built in filtering MULTIPLE WAYS TO POWER THE PRODUCT • Powered from the DC Input: use ref. 2460(UK) • Power from Trunk : this is if another 974xMC is • powering the system – Each product has a power-up diagnostic mode with a LED to indicate if power is adequate for the system • Power from the STB or MC power insertor • Special low power Legacy mode <2W DSCR MULTISWITCHES • 4 cascadeable LNB inputs from universal Quattro LNBF : VL-HL-VH-HH • 1 terrestrial trunk (active or passive) • 4/8/16 SCR/Legacy outputs • 16 User Bands per output • 1 DC input. SKU: 9746MC Categories: Johansson, Multiswitches, Satellite Tags: Johansson, Multiswitch
