FMT-SHP-500H : Round-bottom tank, non-insulated, cooled by liquid, 500/625 liters 2.5 bar (simplified fermenter)

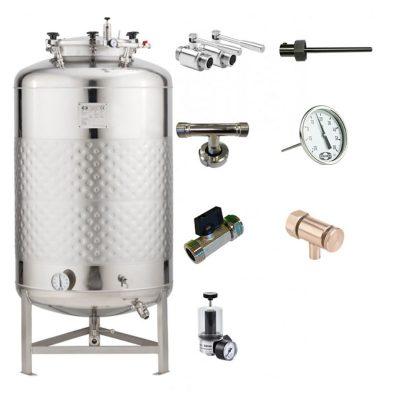

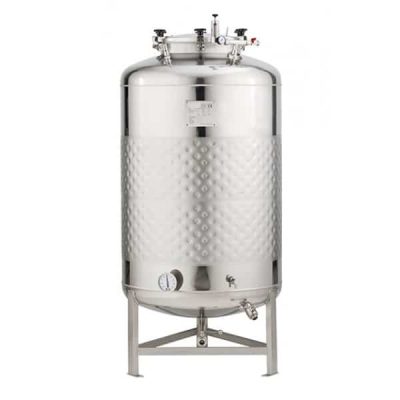

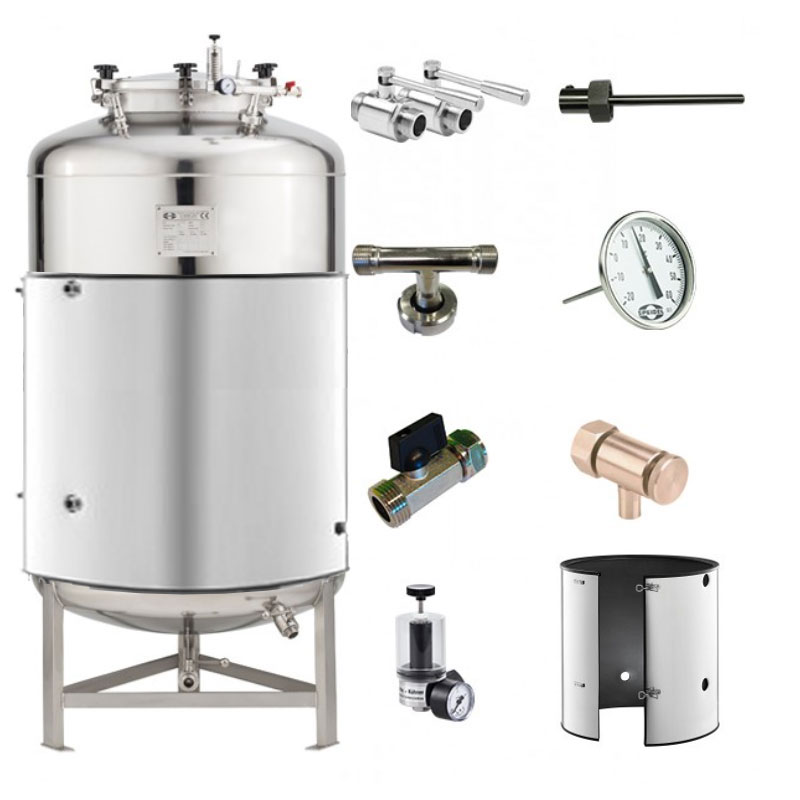

Description FMT-SHP-500H is the simplified high-pressure beverage round-bottom tank with usable volume 500 liters and total volume 625 liters for both fermentation and maturation of beer, cider, wine and other beverages, made of stainless food steel DIN 1.4301 (AISI 304). Adjustable  pressure from 0bar to 2.5bar, non-insulated tank or partitially insulated with a simple insulation jacket (depending on the choosed version) , with water (or glycol) cooling channels.  This offer and price includes the tank which is equipped with the most common equipment. This equipment may be replaced or supplementedand with other accessories described in the section “Optional accesories”   Non-insulated version : Partitially insulated version : Main features: Pressure top arched dome : NW 400 Safety valve mounted on top layer Type plate for the identification of the container Multi use connection: nozzle NW 25 DIN 11851 welded on the top arched bottom – intended for T-adapter to the connection of carbon dioxide valve and adjustable pressure valve or sprayhead holder NW 10 for a cleaning of the tank. Threaded neck for connection of the sample valve NW 10 DIN 11851 Temperature measuring-welded threaded connector NW 10 DIN 11851 Pure product drain outlet BSP 1″ ET (external thread) Sediment / yeast drain outlet BSP 1″ ET (external thread) Double jacket 2 x BSP 1″ ET (external thread) Adjustable pressure from 0bar to 2.5bar using the special setting apparatus which is mounted on the top arched dome     Advantages : The tank is designed for both fermenting and maturating (under pressure) larger quantities of beer (or cider, wine). Material : Stainless steel AISI 304 The special 3D inner surface facilitates cleaning With double cooling jacket at the tank cylinder for the easy automatically water cooling during the maturation and fermentation process Made in compliance with the guidelines for pressure equipment PED 2014/68/EU including approval from Germany’s Technical Inspection Agency (TÜV) The double cooling jacket is equipped with two threaded necks to connection of a water cooler. The tank stands stably and safely on three legs. Several useful available accessories for expanding of the tank. Drawing of the basic tank :     PositionDescription APressure door BPlate for type plate CThreaded neck NW10 DIN 11851 SC 13x1.5 DThreaded neck NW10 DIN 11851 SC 13x1.5 EThreaded neck G1"AG : Drain of pure product FBolted strut 40x8 GRectangular profile 50x30x2 - 360mm HFlat foot 40x5-100 ICooling jacket inlet / outlet : 2x Threaded neck G1" JTube with internal thread G 1/2" DIN 2986 KThreaded neck NW25 DIN 11851 SC 29x1.5 LArched bottom DIN 28011 t=2.5 (min 1.5) MArched bottom DIN 28011 t=2.5 (min 1.5) NCooling jacket OThreaded neck G1" PPipe NW 25 DIN 11850 QWelded joint of bottom and cylindrical part RCorner weld SPipe knee NW 25 DIN 11850 29x1.5 TScrew joint M10x20 UStrut 40x8 VStrut 40x8 XLeg - connection with a strut YTop view ZLeg system - top view Dimensions Usable volume [liters] 500 Total volume [liters] 625 Total height [mm] 1740 Total diameter [mm] 820 Weight of empty tank [kg] 85 Weight of full tank [kg] 710   Standard properties, design and equipment Maximal allowed overpressure 2.5 bar PED 2014/68/EU certificate yes Germany’s Technical Inspection Agency (TÜV) certificate yes Inner surface – surface quality of the stainless steel sheets 3D Inner surface – roughness of the welds Ra<0.8μm Cooling channels (double jackets) yes Insulation of the tank optionally Pressure arched top bottom NW400 yes Safety overpressure valve mounted on top arched bottom yes Type plate for the identification of the container yes Multi use connection: nozzle NW 25 DIN 11851 moulded on top layer. It is prepared to mounting of the T-adapter for the connection of carbon dioxide valve and plug apparatus or sprayhead holder NW 10 for cleaning >> See optional accessories bellow … yes Double jacket cooling channel in/out 2x 1″ ET yes Nozzle for sample cock  NW10 DIN11851  >> See optional accessories bellow … yes Threaded thermometer socket NW10 – To mounting of the thermometer or the temperature sensor of the control system. See more about it … yes Pure product drain outlet 1″ ET yes Sediment / yeast drain outlet 1″ ET yes Stable legs  [pcs] 3 pcs Automatic temperature control system >> See optional accessories bellow … optionally    Recommended use Usable for the fermentation process yes Usable for the maturation process yes Usable for the storage of the finished product yes Usable for the non-pressure product flotation yes Usable for the product clearing under pressure yes Usable for the product filtration under pressure yes Usable for manual filling of the product into kegs yes Usable for manual filling of the product into bottles yes Usable for machinery filling of the product into kegs yes Usable for machinery filling of the product into bottles yes Example accessories (included in this configuration) T-adapter T-adapter allows the connection of carbon dioxide valve and plug apparatus or sprayhead holder NW 10 for cleaning. Pressure adjusting apparatus To adjusting of the pressure inside the tank during the fermentation or maturation process. Fits on T-adapter piece, connection IT ¾“ with coupling nut. CO2-cut-off cock The reductor valve between CO2 hose and T-adapter.  Fits on T-adapter piece. IT–ET ¾“ Sampling cock type 1 To tasting of beer, cider, wine directly from the tank.  Stainless steel ball valve 1″ To connection of hose between tanks and other equipment (pump, brewhouse, filter, other tank …)    Stainless steel drain valve 1″ To discharge the full content of the tank.   Optional accessories (for surcharge)   Insulation jacket Recommended equipment of the tank for save cooling power and for tanks placed in non-cooled space. The additional insulation is positoned only on the cylindrical part of the fermentor. Carbonization stone The candle with a porous stone for the saturation of the beer, wine or cider by compressed oxygen, carbon dioxide, nitrogen or other technical gas, when the beverage is in the tank under pressure. Sampling cock type 2 To tasting of beer, cider, wine directly from the tank. Sampling spiral To reducing of foam during the tasting of beer with the sampling valve.  It is designed  for use with simplified stainless steel pressure fermenting / maturating tanks and the sampling cock type  2. Thermometer analog NW10 To mounting into the threated jacket NW10. May be replaced by the temperature sensor of the control system.  CIP sanitizing nozzle To easy cleaning and sanitizing of the tank . It is optionally mounted on the NW10 instead the T-adapter during the tank sanitizing process. Reduction from G 1″ (IT) to TriClamp DIN32676 (D=50.5 mm) For connection of the tank (internal thread BSP G1″) with the beverage hose with the DIN32676 DN 25 (Disc diameter 50.5mm) connector. description Reduction from G 1″ (IT) to DN25M DIN11851 (ET) For connection of the tank (internal thread BSP G1″) with the beverage hose with the DIN11851 DN 25 (NW 25 external thread) connector. description Reduction from G 1″ (IT) to DN32M DIN11851 (ET) For connection of the tank (internal thread BSP G1″) with the beverage hose with the DIN11851 DN 32 (NW 32 external thread) connector. description Reduction from G 1″ (IT) to DN40M DIN11851 (ET) For connection of the tank (internal thread BSP G1″) with the beverage hose with the DIN11851 DN 40 (NW 40 external thread) connector. description Disc valve NW 40 DIN 11851 (ET) To connection of the hoses – filling and discharging the tanks, discharging of pure beverage product above sediments. description Water (glycol) cooler for one single tank Compact water (or glycol) cooler with integrated digital temperature controllers and temperature sensor (fully equipped temperature control system for use with a single tank). Cooling capacity 1200 W is sufficient for cooling of the insulated tanks up to 1000 liters or non-insulated tanks up to 500 liters. description Water (glycol) cooler for four tanks Compact water (or glycol) cooler with four integrated digital temperature controllers and temperature sensors (fully equipped temperature control system for use with four tanks). Cooling capacity 2300 W is sufficient for cooling of the insulated tanks up to 2000 liters or non-insulated tanks up to 1000 liters. description Water (glycol) cooler for more tanks Water cooler from 0.85 to 10 kW for simultaneous cooling more tanks. You need also use the measuring and temperature control system. description Temperature measuring and control system Fully equipped temperature measuring and control system for simultaneous cooling more tanks. You need also use some water cooler with cooling capacity according of number and total volume of the tanks. description Compact temperature controller for one tank Fully equipped compact temperature measuring and control system for cooling one tank (each tank requires one piece of the controller). Includes digital controller, temperature sensor, regulation valve. You need also use some water cooler with cooling capacity according of number and total volume of the tanks. description Compact temperature controller for 1-5 tanks Fully equipped compact temperature measuring and control system for cooling one up to five tanks. Includes digital controller, temperature sensors, regulation valves. You need also use some water cooler with cooling capacity according of number and total volume of the tanks. description CIP-32 cleaning and sanitizing station The CIP-32 is a mobile machine to the cleaning, sanitizing and sterilization of tanks and piping routes. The device consists of two separate containers with nominal volume of 30 liters, one centrifugal pump, electric control panel, manual valves and all installation pipes as well. description   How to choose the right type of CCT ? Type of CCTCCT-SNPCCT-SLPCCT-SHP Maximal adjustable pressure in the tank0.0 bar1.2 bar2.5 bar Usable for the fermentation processyesyesyes Usable for the maturation processnoyesyes Usable for the storage of the finished productnoyesyes Usable for the non-pressure product flotationyesyesyes Usable for the product clearing under pressurenoyesyes Usable for the product filtration under pressurenonoyes Usable for manual filling of the product into kegsnoyesyes Usable for manual filling of the product into bottlesnoyesyes Usable for machinery filling of the product into kegsnonoyes Usable for machinery filling of the product into bottlesnonoyes     Our recommendation: If you are comparing our prices with competitors, please always make sure that any other manufacturer guarantees the same quality as our company offers.
