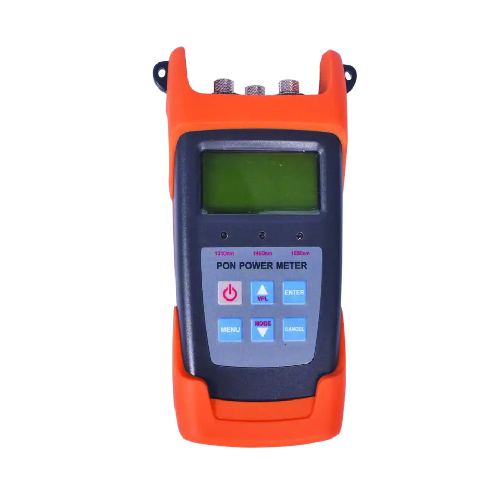

Digital Fiber Optical Power Meter with High-Speed 3-Wavelengths – GAOTek

Description Overview GAOTek Digital Fiber Optical Power Meter is a specialized electronic instrument used to measure the optical power or energy of light signals transmitted through optical fibers. It plays a crucial role in fiber optic communication systems and is commonly employed in various applications, including telecommunications, data centers, networking, fiber optic installations, and maintenance.   Features It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON. Providing simultaneous measurement for all three wavelengths on the fiber (1490 nm, 1550 nm,1310 nm ) Used in Burst mode measurement of 1310nm upstream. Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength. USB communication port enables data transfer to a PC.1000 measurement item can be saved in SFT3213 PON power meter or computer for data review.   Technical Specifications Detector Type  InGaAs Optical Connector  FC/SC/ST Interchangeable/2.5 universal adapter Fiber Type  SM 9/125 um Measurement Unit  dB/dBm Resolution (dB)  0.01 dB Operation Voltage(V)  DC 3.3 V to 5.5 V Power Supply  3pc 1.5 V battery Continuously Operation time (h)  PON:90 h Connatural uncertainty(dB)  ± 0.5 dB Linearity(dB)  ± 0.1 dB Passing through insertion Loss(dB)  < 1.5 dB Operation environment (Temperature)   14 °F to 140 °F ( -10 °C to 60 °C ) Storage Temperature   -13 °F to 158 °F ( -25 °C to 70 °C ) Weight  0.93 lb. (423 g)
