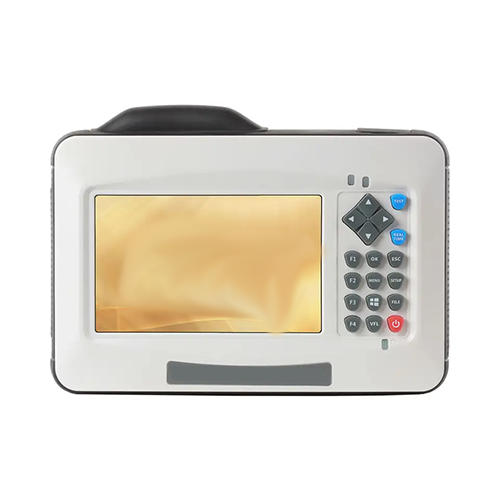

Cost-Effective Optical Power Meter with VFL and Touchscreen – GAOTek

Description Overview GAOTek Optical Power Meter is high cost-effective choice. The dynamic range is from 26 dB to 35 dB. The humanized interface is convenient and quick to operate. With the function of VFL, Power meter, it will be a great helper in the fiber network testing.   Features With an online light alarm function Support customer customization needs FLM (Fiber Link Map) function, icon display fiber events High-cost-effective OTDR choice 5-inch LCD touchscreen One-button screenshot function   Technical specifications Wavelength 1310 nm or 1550 nm Dynamic Range 30 dB or 28 dB Dead-zone 3.28 ft or 16.40 ft (1 m or 5 m) Pulse Width 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs Sampling Resolution Min 0.16 ft (0.05 m) Sampling Points Max 128,000 Linearity ±0.03 dB/dB Loss Threshold 0.01 dB Distance Resolution 0.04 in (0.01 m) Loss Resolution 0.001 dB IOR 1.2000 to 1.7000 Distance Accuracy ± (3.28 ft or 1 m test distance × 3 × 10 -5 sampling resolution) （excluding IOR uncertainty） Memory Capacity 80,000 groups curve VFL 10 mW，CW / 2 Hz OPM Calibrated wavelength：850 or 1300 or 1310 or 1490 or 1550 or 1625 or 1650 nm Test range：-60 to 5 dBm Interface 3 x USB port（Type A×2，micro USB × 1） Display 5-inch TFT-LCD touch screen Battery 7.4 V or 3300 mAh lithium battery, Continuous work: 6 hrs (backlight off) Charge time: 3.5 hrs Accessories Power adapter, Charge cord, Lithium battery, FC adapter, USB cable, Quick guide, Test report, CD, Carrying bag, Wrist strap Optional SC/LC adapter, Launch cable box Data storage Pluggable 8 GB micro SD card Battery 5000 mAh lithium battery Working humidity 0 to 85% (non-condensing) Working temperature 14 °F to 122 °F (-10 ℃ to 50 ℃) Dimension 7.59 in × 3.69 in × 1.85 in (192.9 mm × 93.8 mm × 47 mm) Weight 1.25 lb (570 g)
