Compact Optical Power Meter with 240-Hour Battery and High Accuracy – GAOTek

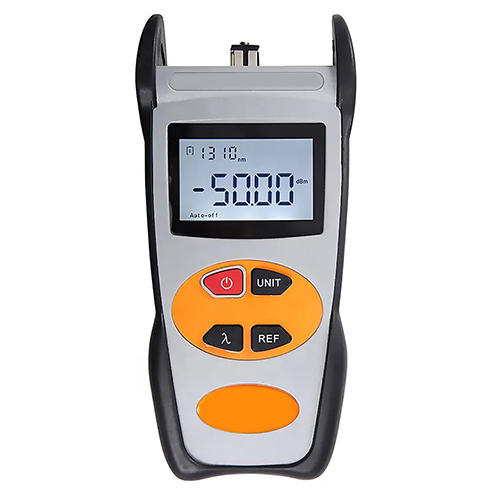

Description Overview GAOTek Handheld Fiber Optical Power Meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.   Features Reference power level storage (Ref Setting) 10 minutes Auto-off function can be activated or deactivated Power measurements in dBm or mW and insertion loss in dB Comfortable LCD and optional backlight LCD support night operation Low battery consumption, more than 240 hrs of continual operation time with three 1.5 V alkaline batteries   Technical specifications Wavelength(nm) 800 nm to 1700 nm Detector InGaAs Uncertainty ± 5 % Calibrated Wavelength(nm) 850, 1300, 1310, 1490, 1550, 1625 Resolution(dB) 0.01 Optical Connector FC (interchangeable SC,ST) / as well as 0.1 in (2.5 mm) universal Power Supply Alkaline Battery (3 AA 1.5 V batteries) Battery Operating Time 240 hrs with 1.5 V Operating Temperature 14 °F to 140 °F (-10 °C to 60 °C) Storage Temperature  -13 °F to 158 °F (-25 °C to 70 °C) Relative Humidity 0 % to 95 % Dimension 7.87 in × 3.54 in × 1.97 in (200 mm X 90 mm X 50 mm) Weight  0.63 lb (285 g)
