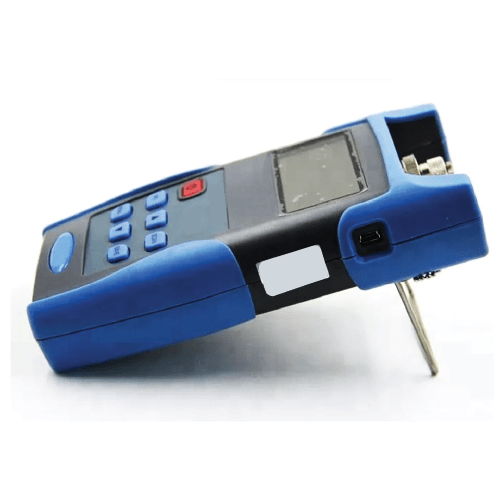

Description Overview GAOTek fiber optic testers are innovative products from technology designed for fiber network installation, engineering acceptance, and maintenance. They aim to detect fiber fault locations accurately and quickly, making them ideal for field use. These testers serve as economical alternatives to OTDRs in the testing and maintenance of fiber networks. Features Easy to identify the fault’s location Analysis reflection events and attenuation events automatically Build-in visual fault locator function Automatic Pulse Width Control design to ensure a convenient operation Up to 2500 measurement results can be stored in the unit Technical specification Operating Wavelength 1550 ± 20 Optical Connector Type FC or PC Pulse Width Auto adjustment Max. Distance 37.28 mi (60 km) Distance Accuracy ± (9.84252 ft 2×10−4×3.28084×distance) feet (3m 2 x 10^-4 x distance) m Ref Lection Event Dead Zone 49.21 ft (15 m) Power Supply AA,3 pcs Battery Operating Time >2500 Auto Power-off Time 10 min VFL Output Power >1 mW Data Storage Capacity 2000 Working Temperature 23 °F to 104 °F (-5 ℃ to 40 ℃) Storage Temperature 14 °F to 158 °F (-10 ℃ to 70 ℃) Color Blue Dimensions 6.9 in x 3.5 in x 1.8 in (175 x 90 x 44.5 mm) Weight 0.6 lb (278 g)
