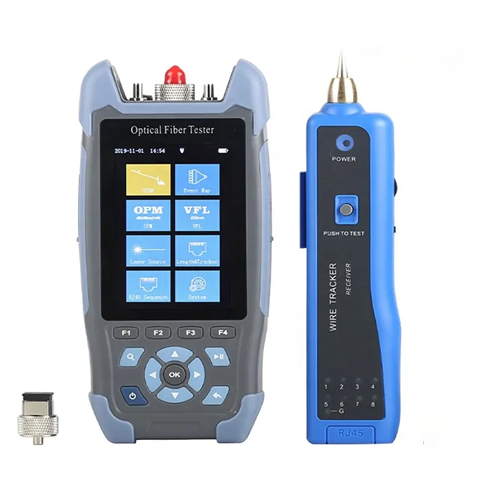

Description Overview GAOTek fiber optic ranger is applying to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key. The tester is compact with a 3.5 in (8.89 cm) colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combines 8 functions with highly integrated OTDR, Event maps, Stable Light source, Optical power meter, Visual fault locator, cable sequence proofreading, cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector, 600 internal storage, TF card, USB data storage and built-in 4000 mAh lithium battery, USB charging. It is a good choice for long term field work. Technical Specification Wavelength 1310 nm or 1550 nm ± 20 nm Fiber Type G.652 SM Fiber Dynamic Range 24 dB or 22 dB Test Range 0.31 mi to 37.3 mi (500 m to 60 km) Pulse Width 3 ns or 10 us Ranging Accuracy ± [3.28 ft (1 m) Sampling Interval 0.005 % × Test Distance] Loss Accuracy ± 0.2 dB Reflection Accuracy ± 3 dB Laser Safety Level Class II level Connector FC or UPC (Interchangeable SC, ST) OPM Wave Range 800 nm to 1700 nm Interface Type Universal Joint FC or SC or ST Test Range – 50 dBm to 26 dBm Uncertainty ± 5 % Calibration Wavelength 850 nm or 980 nm or 1300 nm or 1310 nm or 1490 nm or 1550 nm or 1625 nm or 1650nm LS Output Wavelength 1310 nm or 1550 nm ± 20 nm Output Power ≥ – 5 dBm Stability CW, ± 0.5 dB or 15 min (Test after 15 mins of preheating) Connector FC or UPC (Interchangeable SC, ST) VFL Work Wavelength 650 nm ± 20 nm Output Power ≥ 10 mW Connector FC or SC or ST RJ45 Cable Length Measurement Test Range 0.18 mi (300 m) Other Parameters Display 3.5 in (8.89 cm) Color LCD Data Interface Micro USB External Storage TF Card Power Supply Polymer Li-battery: 3.7 V, 4000 mAhPower Adapter: 5 V DC, 2 A Battery Life Standby > 20 hrs; Measuring Time > 12 hrs Operating Temperature 14 °F to 122 °F (- 10 °C to 50 °C) Storage Temperature – 40 °F to 158 °F (- 40 °C to 70 °C), Relative Humidity 0 % to 95 % non-Condensing Weight ≤ 0.77 lb (350 g) Dimension 6.81 in × 3.23 in × 1.46 in (173 mm × 82 mm × 37 mm)
