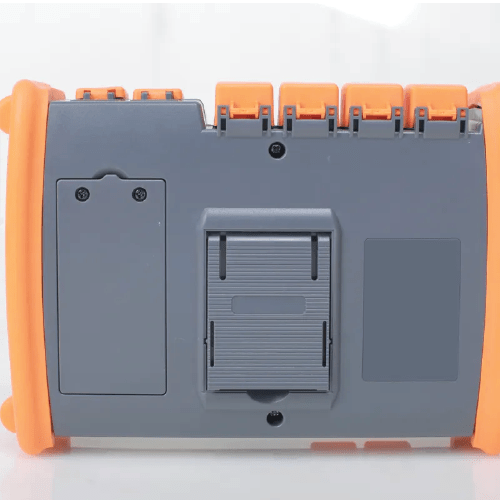

Description Technical specification Sampling Points 16 k to 256 k Dynamic Range 3 Db or 30 dB OTDR (Optical Time Domain Reflectometer) Support OPM (Optical Fiber Power Meter) Support VFL, LS (Laser Source) Support Event Map Support Sampling Resolution 0.16 ft to 52.49 ft (0.05 m to 16 m) Standby Time 20 hours Data Interface USB, Mini-USB,332.81 ft to 328.08 ft (10 m or 100 m) Ethernet port Refresh Rate 3 Hz Wavelength Range 800 nm to 1700 nm Connector FC or UPC Output Power >= 2 mW Size 5.6 in (88.9 mm) Weight <=2.645 lb (<=1.2 kg)
