Fiber Ranger Mini Accurate Fault Detection with 0.00155mm – GAOTek
$40.46
$52.6

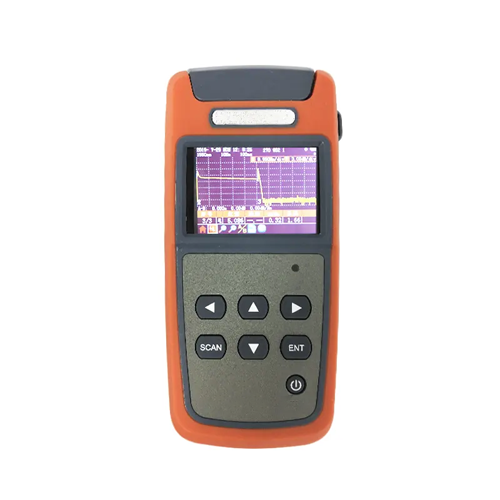

Description Overview GAOTek optical fiber ranger mini is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates powerful analysis software, which enables the fiber ranger to detect fiber fault location more accurately. Features Easy to use Portable, rugged, lightweight More accurate testing results and better repeatability Automatic pulse width control designed to ensure a convenient operation Easy to identify the fault location Built-in visual fault locator makes it convenient to find the faults in dead zone Dust, water and shock proof, designed for field use 6 in (6.6 cm) screen, data saved in SOR format Technical Specifications Operating Wavelength 1550 nm Fiber Type 9 μm or 125 μm SM Connector FC or SC Pulse Width 5 ns, 10 ns, 25 ns, 50 ns, 100 ns, 250 ns, 500 ns, 1 μs, 2.5 μs, 5 μs, 10 μs, 20 μs Attenuation Dead Zone 32.8 ft (10 m) Event Dead Zone 9.84 ft (3 m) Min. Distance Resolution 3.94 in (0.1 m) Loss Resolution 0.001 dB Distance Uncertainty ± [31.5 in (0.8 m) 0.005 % * Testing Distance Resolution] OPM Function T: 8 dBm to – 70 dBm or C: 26 dBm to – 50 dBm, 850 nm or 1300 nm or 1310 nm or 1490 nm or 1550 nm or 1625 nm, FC or SC adapter VFL Function 1 mW Storage > 500 results Working Temperature 23 °F to 104 °F (- 5 °C to 40 °C) Storage Temperature 14 °F to 140 °F (- 10 °C to 60 °C) Humidity 0 % to 85 % (non-condensation) Weight 0.66 lb (300 g)
