Fiber Optic Tester with 60km Range & Quick Fault Location – GAOTek
$43.83
$60.49

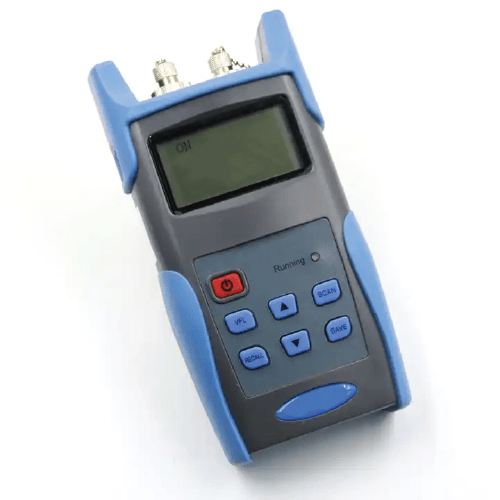

Description Overview GAOTek optical fiber rangers is a newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. It can detect fiber fault location more accurately and quicker and is designed for field use. Fiber ranger is an economical tester instead of OTDR in the test and maintenance of fiber network. Features Easy to identify the fault’s location Analysis reflection events Attenuation events automatically Build in visual fault locator function Automatic Pulse Width Control design Ensure a convenient operation Up to 2500 measurement Results can be stored in the unit Technical Specifications Operating Wavelength 1550 ± 20 Fiber Type 9 μm or 125 μm Optical Connector Type FC or PC Detector Type In GaAs APD Pulse Width Auto adjustment Max. Distance (km) 60 Distance Accuracy (Reflection Event) (m) ± (9.84 ft (3 m) 2*10^-4 * distance) Ref lection Event Dead Zone (m) 49.2 ft (15 m) Power Supply AA,3pcs Battery Operating Time > 2500 Auto Power-off time (min) 10 VFL output power (mW) > 1 mW Data Storage Capacity 2000 Working Temperature (℃) 23 °F to 104 °F (-5 ℃ to 40 ℃) Storage Temperature (℃) 14 °F to 158 °F (-10 ℃ to 70 ℃) Dimensions(mm) 6.88 in x 9.54 in x 1.75 in (175 mm x 90 mm x 44.5 mm) Weight (g) 0.61 lb (278 g)
