Fiber Optic OTDR with 159.07mi Range High-Performance – GAOTek

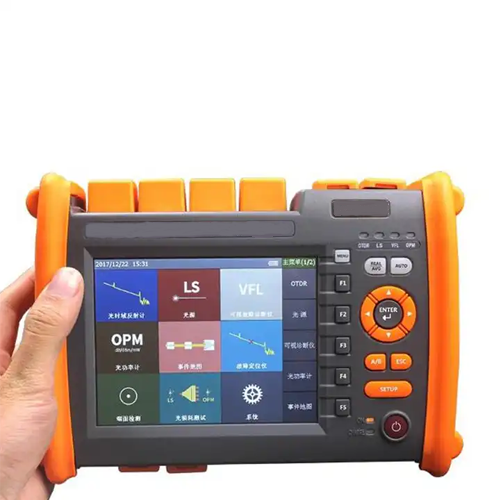

Description Overview GAOTek Fiber Optic OTDR is a new generation of portable and intelligent measuring instruments designed by AVES Communication Technology for testing optical fiber communication systems. Adopt 5.8 in (14.43 cm) colour touch screen, button or touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hrs long standby, efficient protection of test dimension continuous.   Features High-performance test Multifunctional test Standard configuration Multifunctional test high configuration Convenient operation Convenient data processing High reliability   Technical specifications Fiber Type SMF Display 5.8 in (14.43 cm) color LCD with touch screen Wavelength 1310 nm or 1550 nm Maximum Dynamic Range 32 dB or 30 dB Event Dead Zone 3.28 ft (1 m) Attenuation Dead Zone 19.68 ft (6 m) Measuring Range 0.31 mi, 0.62 mi, 1.24 mi, 2.48 mi, 4.97 mi, 9.94 mi, 14.91 mi, 19.88 mi, 39.76 mi, 79.53 mi, 159.07 mi (500 m or 1 km or 2 km or 4 km or 8 km or 16 km or 32 km or 64 km or 128 km or 256 km) Measuring Pulse Width 5 ns or 10 ns or 5 ns or 160 ns or 320 ns or 500 ns or 1000 ns or 5000 ns or 1000 ns or 2000 ns Ranging Accuracy ±(29.5 in (0.75 m) Sampling interval 0.005% x Test distance) Loss Precision ±0.05 dB Reflection Accuracy ±3 dB Data Storage ≥2000 Interface Type FC or PC (Replaceable SC, ST) Communication Interface USB, mini-USB, 10 M or 100 M Ethernet Size 8.93 in x 6.29 in x 2.75 in (227 mm x 160 mm x 70 mm) VFL Output ≥5 mW
