Fiber Fault Locator Portable with 3.5in Color LCD & 32.80ft Range – GAOTek

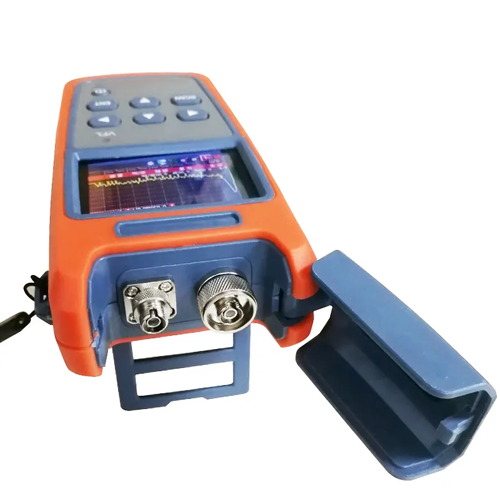

Description Overview GAOTek Ranger Mini OTDR is the most portable test instrument in the industry. It adopts the technical principles and integrates powerful analysis software, which enables the fiber ranger to detect fiber fault location more accurately.   Features Easy to use Portable, rugged, lightweight More accurate testing results and better repeatability Automatic pulse width control designed to ensure a convenient operation Easy to identify the fault location Built-in visual fault locator makes it convenient to find the faults in dead zone Dust, water and shock proof, designed for field use 2.6 in (6.60 cm) screen, data saved in SOR format   Technical specifications LCD  3.5 in (8.89 cm) color LCD, Multi-touch screen Connector  FC or SC Pulse Width  5 ns,10 ns,25 ns,50 ns,100 ns,250 ns,500 ns,1 us,2.5 us,5 us,10 us,20 us Attenuation Dead Zone 32.80 ft (10 m) Event Dead Zone  9.84 ft (3 m) Mi. Distance Resolution  3.93 in (0.1 m) Loss Resolution  0.001 dB Distance Uncertainty  ±(31.49 in (0.8 m) 0.005% x Testing Distance Resolution) OPM Function  T: 8 dBm to -70 dBm or C: 26 dBm to -50 dBm, 850 nm or 1300 nm or 1310 nm or 1490 nm or 1550 nm or 1625 nm, FC or SC adapter VFL Function  1 mW Storage  >500 results
