$64.41
$86.31

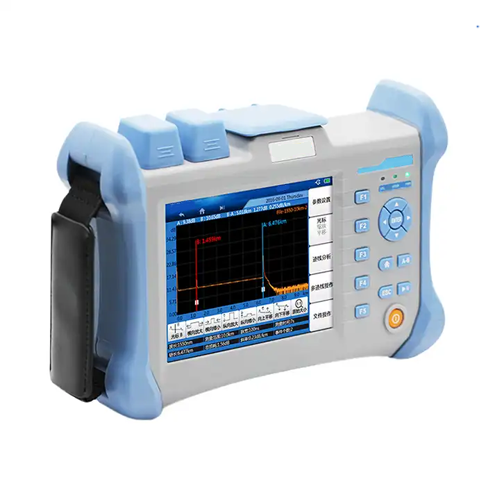

Description Features 5 ns to 10 μs for SM 5 ns to 1 μs for MM 86 mi to 74.56 mi (3 km to 120 km) for SM 062 mi to 49.71 mi (100 m to 80 km) for MM Sampling Resolution: Minimum 2 in (0.05 m) Linearity: ≤0.05 dB Loss Threshold: 0.01 dB Data Storage: 20,000 groups of curves. Display: 5.6 in (14.22 cm) TFT LCD, Touchscreen Battery: 7.4 V or 4.4 mAh lithium Technical Specifications Pulse Width (SM 1310 nm or 1550 nm) 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs(MM 850 nm or 1300 nm) 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 500 ns, 1 us Distance Range (SM 1310 or 1550 nm) Dead zone test, 0.8 mi, 1.55 mi, 3.1 mi, 6.21 mi, 12.42 mi, 24.85 mi, 49.70 mi, 74.56 mi (1.3 km, 2.5 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km), (MM 850 nm or 1300 nm): 0.06 mi, 0.24 mi, 0.80 mi, 1.53 mi, 3.10 mi, 6.21 mi, 12.47 mi, 24.85 mi, 49.70 mi (100 m, 400 m, 1.3 km, 2.5 km, 5 km, 10 km, 20 km, 40 km, 80 km) Sampling Resolution Minimum 1.96 in (0.05 m) Sampling Point 128,000 Linearity ≤0.05 dB Loss Threshold 0.01 dB Loss Resolution 0.001 dB Distance Resolution 0.39 in (0.01 m) Distance Accuracy ±(3.28 ft (1 m) measuring distance × 3 × 10 sampling resolution) Data Storage 20000 groups of curves VFL 10 mW, CW or 2 Hz Interface 3 USB ports (Type A × 2, Type B × 1) Display 5.6 in (14.22 cm) TFT LCD, Touching screen Working Temperature 14 °F to 122 °F (-10 °C to 50 °C) Storage Temperature -4 °F to 158 °F (-20 °C to 70 °C) Humidity ≤95% (non-dew) Battery 7.4 V or 4.4 Ah lithium battery, support 8 hrs continuous working Dimensions 9.96 in x 6.61 in x 2.89 in (253 mm x 168 mm x 73.5 mm) Weight 3.30 lb (1.5 kg) (include battery)
Optical Fiber Rangers
