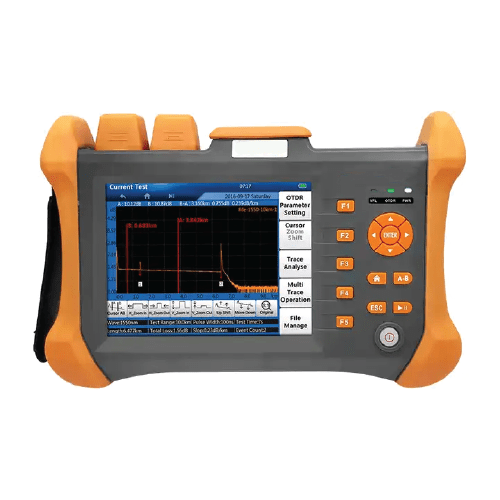

Description Overview GAOTek optical fiber rangers is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and country sides, the measurement of optical network becomes short and dispersed; it’s specially designed for that kind of application, economically, and having outstanding performance. Features 5.6 in (14.2 cm) outdoor enhanced touchscreen 4 V or 4.4 Ah Lithium battery Event Dead zone as lower as 4.92 ft (1.5 m) Combined multi dynamic range and wavelengths Muti measurement mode Support Touching LCD and pressing keys Warning function could prevent Module from being damaged Optical signal in fiber Realtime measuring function Convenient to monitor the splicing process Integrated 10 mw Visual Fault Locator Adopts friendly input interface Totally simulate the computer keyboard input Integrated with 8 GB internal memory More than 80,000 groups curve storage PC remote access Control function is available Which support the printing Work of the measurement report Technical Specifications Pulse Width (SM 1310 nm or 1550 nm) 5 ns 10 ns 20 ns 50 ns 100 ns 500 ns 1 μs 2 μs 5 μs 10 μs : (MM 850 or1300 nm) 5 ns,10 ns,20 ns,50 ns,100 ns,500 ns 1 us Distance Range (SM 1310 nm or 1550 nm) Dead zone test, 0.80 mi, 1.55 mi, 3.10 mi, 6.2 mi, 12.4 mi, 24.8 mi, 49.7 mi,74.5 mi, (1.3 km, 2.5 km, 5.0 km, 10 km, 20 km, 40 km, 80 km, 120 km, (MM 850 nm or 1300 nm):0.06 mi, 0.24 mi, 0.80 mi, 1.55 mi, 3.10 mi, 6.2 mi, 12.4 mi, 24.8 mi, 49.7 mi (100 m, 400 m, 1.3 km, 2.5 km, 5 km, 10 km, 20 km, 40 km, 80 km) Sampling Resolution Minimum 1.96 in (0.05 m) Sampling Point 128,000 Linearity ≤0.05 dB or dB Loss Threshold 0.01 dB Loss Resolution 0.001 dB Distance Resolution 0.03 ft (0.01 m) Distance Accuracy ±（3.2 ft (1 m measuring distance×3×10 sampling resolution)) Data Storage 20000 groups of curves VFL 10 mW, CW or 2 Hz Interface 3 USB ports (Type A × 2，Type B × 1） Display 5.6 in (14.2 cm) TFT LCD, Touching screen Battery 7.4 V or 4.4 Ah lithium battery, support 8 hrs continuous working Working Conditions Working Temp：14 °F to 122 °F (-10 ℃ to 50 ℃) ；Storage Temp：-4 °F to 158 °F (-20 ℃ to 70 ℃) ；Humidity ：≤95 %（non dew） Dimensions 9.9 in x 6.61 in x 2.89 in (253 mm × 168 mm × 73.5 mm) Weight 3.30 lb (1.5 kg) （include battery）
Optical Fiber Rangers
