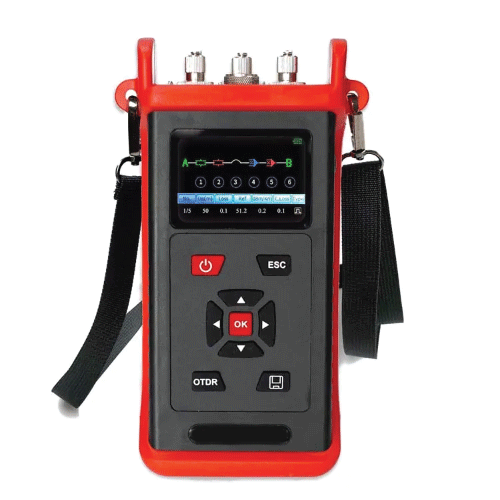

GAOTek Mini Fiber Optic OTDR with One-Key Operation
$42.3
$68.95
Description Overview GAOTek Mini Fiber Optic OTDR with One-Key Operation tester is developed and designed by adopting a single wavelength 1625 nm, based on the full understanding of FTTH network, it replaces the PON OTDR with multi-wavelength in one (1310 or 1550 or 1625) on the market, reduces purchase and operation costs, completely meets the demand of rapid troubleshooting from end users during maintenance work. It is one user-friendly and professional FTTH tester. Features One instrumental PON OTDR Independent Wavelength 1625 design concept One-key operation, No complex setting Reducing procurement and maintenance labor costs Real-time online test, one-key mode operation Unnecessarily cut optical signal in transmission Tested with 1:64 Splitter PON OTDR OPM VFL 3 in 1 Swift and Convenient data save and printing out Technical Specifications Dynamic Range 40 dB 35 dB Number of Splitters 1:64 1:32 Test Dead Zone ≤ 9.8 ft (3 m) Dead Zone of Reflective Event ≤ 32.8 ft (10 m) Dead Zone of Attenuation Event ≤ 98.4 ft (30 m) Distance Resolution 3.2 ft (1 m) Pulse Width 10 ns to 500 ns Distance Uncertainty ± (0.8 m ± 0.01% * Test distance ±Resolution) Threshold of Loss > 0.3 dB Resolution of Loss 0.1 dB Connector SC or FC OPM Supported Wavelength 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm VFL 10 mW (Optional 1 mW,5 mW, 20 mW) Storage Ability 100 Items Display 2.8’’ TFT color screen Port Mini USB Battery 1.5 V AA battery Working Time Standby > 15 hours, Test > 8 hours Dimension(L x W x H) 7.00 in × 3.46 in × 1.41 in (178 mm x 88 mm x 36 mm) Weight 0.99 lb (450 g)
