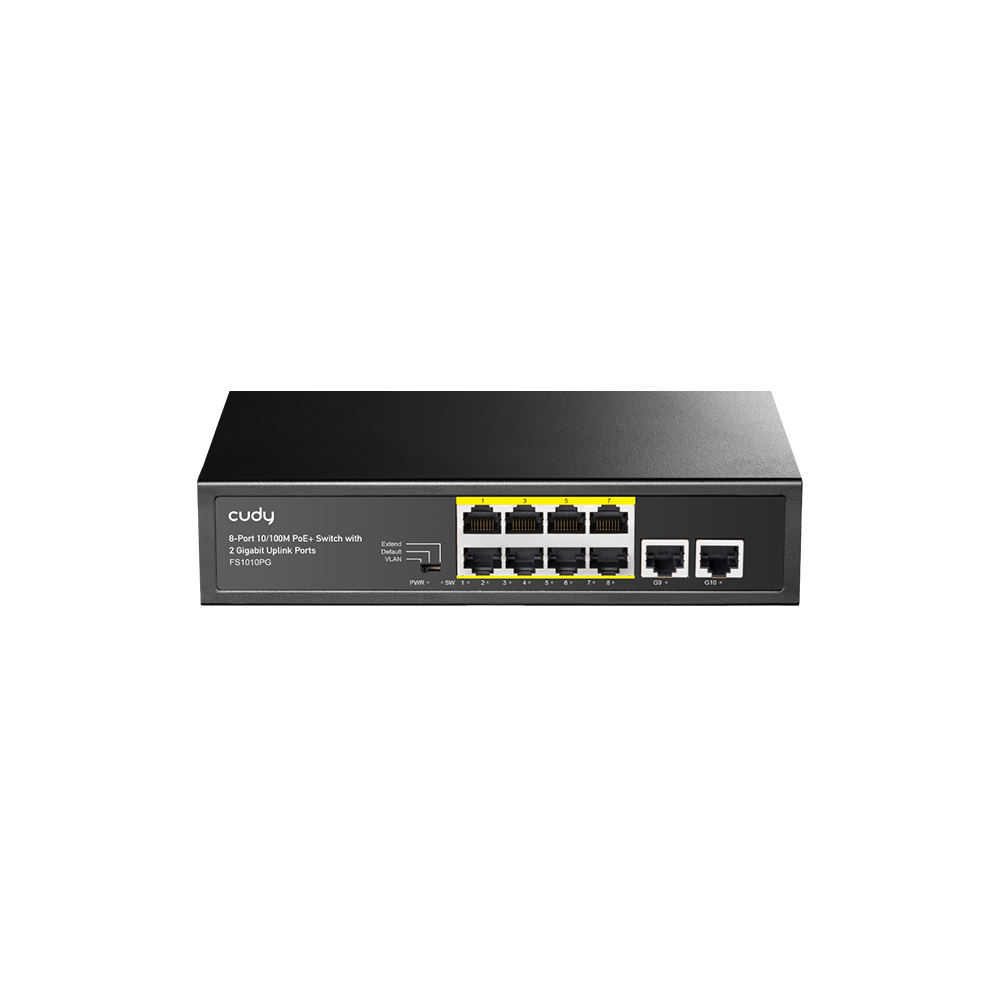

8-Port 10/100M PoE Switch with 2 Gigabit Uplink Ports ( FS1010PG )

Specifications   Model FS1010PG PoE standard IEEE802.3af/at Interface 10*10/100Mbps The RJ45 port through consultationa Key function CCTV&VLAN PoE port 1~8 port PoE Total 120W Power supply 120W RJ45 PoE power supply Mode A     Anode1/2     Cathode3/6 PoE output-port Max 32W Indicator PWR, LNK/ACT, PoE Network media 10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m)； MAC Address Table 8K, Automatic study, automatic updates Jumbo frame 1528Bytes Packet buffer 2M bit Transfer Mode Store-and-forward Packet forwarding rate 1.48Mpps Bandwidth 2M bit Fan Fanless Device Dimension 220*150*44mm Machine Weight >1kg Green energy saving Support IEEE（802.3az) Mains Input 100~240V AC， 50/60Hz Operating Temperature 0°C ~ 40 °C Storage Temperature -40 °C ~ 70 °C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5% ~ 90% non-condensing Surge Protection ±4KV MTBF >50000 hour Electrostatic standard Contact 4KV, air 6KV
