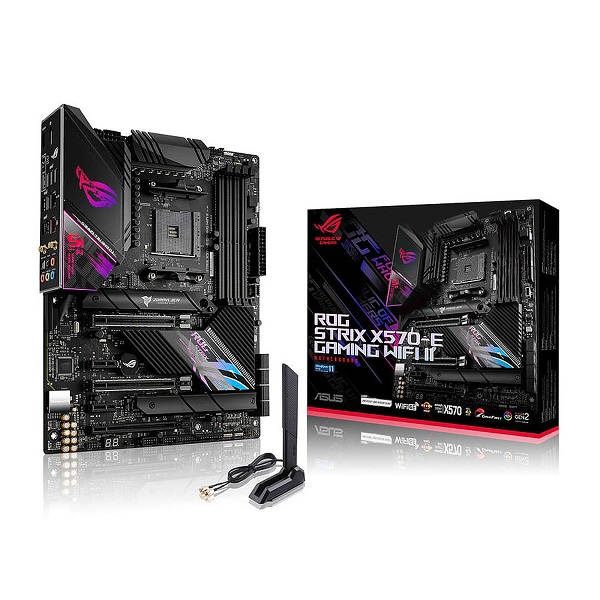

Asus Rog Strix X570-E Gaming Wi-Fi II ATX Gaming Motherboard

Description CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list. Chipset X570 Memory AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen 5000 and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory AMD Ryzen 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen 2000 and 3000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics 1 x DisplayPort 1 x HDMI port – Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz – Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz * VGA resolution support depends on processors’ or graphic cards’ resolution. For more details about the video input and output settings please refer to the user manual. Expansion Slots AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8)* AMD Ryzen 5000 G Series/4000 G-Series/ 2000 Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8)* AMD Ryzen 2000 G-Series/ 3000 G-Series Processor 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 *PCIeX16_3 slot shares bandwidth with PCIeX1_2. Storage Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports Supports RAID 0, 1, 10 Ethernet 1 x Realtek 2.5Gb Ethernet 1 x Realtek 2.5Gb Ethernet 1 x Intel I211-AT 1Gb Ethernet Anti-surge LAN Guard ROG GameFirst Technology Wireless & Bluetooth Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB Rear USB:Total 8 ports AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors – 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A) AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors – 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A) AMD X570 chipset – 1 x USB 3.2 Gen2 front panel connector – 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C) – 2 x USB3.2 Gen1 ports (at front panel) – 4 x USB 2.0 ports (at front panel) Front USB:Total 7 ports Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Supreme FX Shielding Technology – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports 8 x USB 3.2 Gen 2 ports (7 x Type-A 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel I211-AT 1Gb Ethernet port 1 x Realtek 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 1 x 4-pin M.2 Fan header 1 x W_PUMP header Power related 1 x 24-pin Main Power connector 1 x 8-pin 12V Power connector 1 x 4-pin 12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header Special Features Extreme Engine Digi – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-Code – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – ProCool II – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB headers – Addressable Gen 2 headers Software Features ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst V – Sonic Studio III Sonic Studio Virtual Mixer – Sonic Radar III – DTS Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI VRM Fan Xpert 4 Turbo app – EZ update DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode Dynamic OC Switcher BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PXE Accessories Cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual Form Factor ATX 30.5cm x 24.4cm
