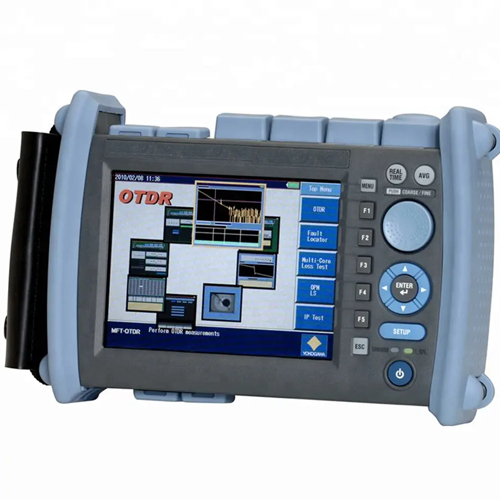

Description Overview GAOTek Fiber Optical SM or MM or PON OTDR have a 5.7”scontrol and a fiber inspection probe with optional built in OLTS function (light source and power meter), PING test function, and visual fault locator. Features Support PING test Video fiber inspection 80cm event dead zone Optical loss test function optional Many SLT, HLT, VFL&LAN options available Technical Specifications Wavelength (nm) 1310 nm or 1550 ± 25 nm Distance Range 0.31 mi (500 m), 0.62 mi (1 Km), 1.24 mi (2 Km), 3.11 mi (5 Km), 6.21 mi (10 Km), 12.43 mi (20 Km), 31.07 mi (50 Km), 62.14 (100 Km) x 124.27 mi (200 Km) Pulse Width 3 ns,10 ns,20 ns,50 ns,100 ns,200 ns,500 ns,1us,2 us,5 us,10 us Dynamic Range 32 dB or 30 dB Event Dead Zone 2.62 ft (0.8 m) Attenuation Dead Zone 16.4 ft (5 m), type Applicable Fiber SM (LTU-T G.652) Optical Connector SC, F C, ASC Laser Class 1 M Display 5.7-in color LCD (640 x 480) Battery Operation Time 6 hours Interface USB Port DC Power USB1.1 TYPE A x 1, TYPE B (mini) x 1 For AC adapter Dimensions 8.57 in x 6.18 in x 2.91 in (217.5 mm x 157 mm x 74 mm) Mass 2.2 lb (1 kg)
