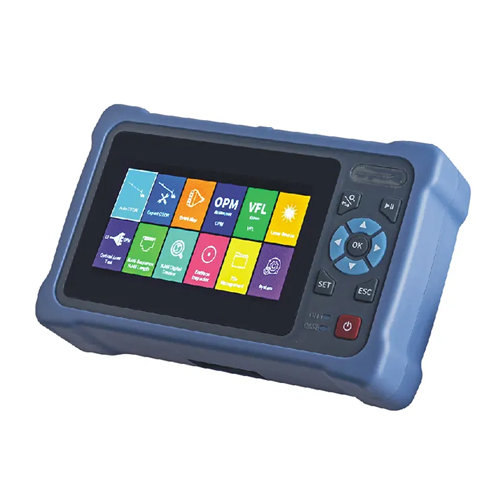

GAOTek Fiber Optic Equipment Test Machine Mini OTDR

Description Features Auto OTDR, expert OTDR, event map, OPM, Light Source, VFL, Lan cable tracker (Including line finder), Lan cable sequence, Lan cable length, flashlight, optical loss test Professional measurement, curve or list or map are displayed simultaneously No complex settings, one key test Optical Power Meter supports CW or 270 or 330 or 1 k or 2 kHz frequency identification Light Source supports CW or modulation mode output with adjustable output power OVFL and LS can run in the background, multi-task can be operated simultaneously Lan cable tracker of digital radar, stronger anti-jamming ability Lan cable sequence cable length test, up to 0.19 mi (300 m).   Technical Specifications Testing Wavelength 1310 nm or 1550 nm Dynamic Range 24 dB or 22 dB Event dead zone 8.20 ft (2.5 m) Test Range 0.31 mi to 0.06 mi (500 m to 60 km) Display 4.3-in Multi touch capacitive touching screen Data Interface USB Type C Internal 8 GB, >= 20 thousand curves Size 6.69 in x 4.13 in x 1.73 in (170 mm x 105 mm x 44 mm)
