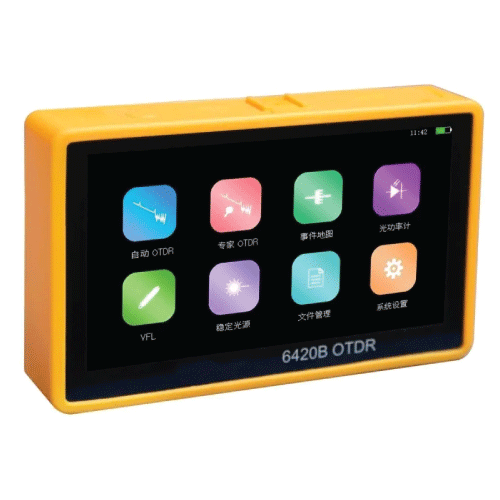

GAOTek Fiber Optic Equipment Multifunction FTTR MINI OTDR

Description Overview GAOTek Fiber Optic Equipment Multifunction FTTR MINI OTDR is used to measure the length, loss, splice quality, and other parameters of various types of optical fiber and optical cable and is widely used in the fields of engineering construction, line maintenance, and emergency rescue testing of optical fiber to the home, metropolitan networks, and secondary backbone communication systems, as well as in the development and production measurement of optical fiber and optical cable.   Features 7 I extra-large touchscreen 28dB super dynamic range, easily test 80 km fiber optic line. 3m ultra-short event blind zone One key automatic test Automatic s identification of fault information Multiple functions integrated into one With the light test, easy to test fault problems in fiber optic lines. 4600 mA large capacity battery, ultra-long life   Technical Specifications Weight 1.76 lb (0.8 kg), including battery External Dimensions 6.96 in 4.29 in x 1.45 in (177 mm x 109 mm x 37 mm), excluding soft plastic Maximum Dynamic Range 28 dB External Interfaces USB Type C, Micro SD Battery Operating Time standby ≥ 6 (high brightness) Display 7 in TFT color LCD (capacitive touch screen) Operating Wavelength  (1310 nm to 1550 nm) ± 20 nm Optical Output  interface FC or UPC, SC or UPC
