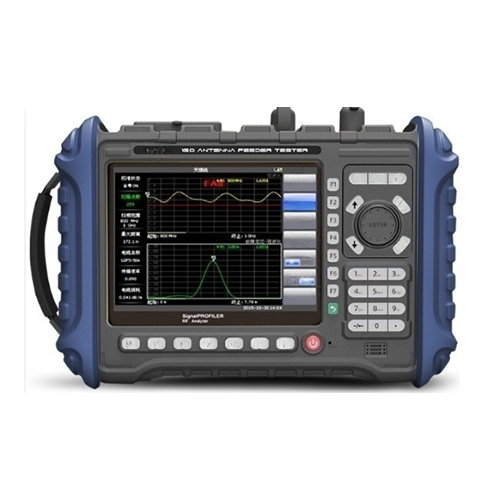

Frequency Antenna Analyzer with Optical Power Meter & 4400 MHz Range – GAOTek
$54.2
$98.1
Description Technical Specifications Frequency range 2 MHz to 4400 MHz Frequency resolution 0.5 kHz Frequency accuracy ±2 ppm Output level ≥0 dBm Scan speed 1 mS/point (return loss) / 1.2 mS/point (fault location) Number of data points 130, 259, 517, 1033, 2065 Interference suppression 10 dBm (within ±10 kHz) / 25 dBm (bias > 1.0 MHz) Directionality ≤42 dB (after mechanical calibration) / ≤38 dB (after electronic calibration) Return loss Range 0.00 to 60.00 dB Return loss resolution 0.01 dB Standing Wave Ratio Range 1 to 65 Standing Wave Ratio Resolution 0.01 Cable loss range 0.00 – 30.00 dB Cable loss resolution 0.01 dB Fault location range 0.00 – 60.00 dB Standing Wave Ratio Range 1 – 65 Distance Range 0 – (Points-1)/ (Bandwidth x2) x Vp (speed factor of the cable) x C (speed of light) Distance Resolution (M) =Vp (speed factor of the cable) x C (speed of light) / (Bandwidth x2) Number of Data Points 130, 259, 517, 1033, 2065 Terminal Power Meter Frequency Range 20 MHz ~ 4400 MHz Amplitude Maximum, minimum, offset, offset switch, automatic amplitude Amplitude (Modes) Average, Max Hold, Run/Pause, Average Mode, Continuous/Single Amplitude Limit Amplitude limit switch, upper/lower limit Display Range -100 dBm ~ 100 dBm Measuring Range -33 dBm ~ 20 dBm Offset Range Max ±100 dB, user configurable Standing wave ratio 1.4:1 (Typical value) Maximum input power 27 dBm, ±50 VDC (Greater than this value will damage the instrument Connector Type N(m), 50 Ω Accuracy ± 0.5 dB (23 °C ±3 °C) Frequency response and line speed ± 0.8 dB (±0.5 dB Typical value) Temperature effect ± 0.02 dB/1 °C (Typical value) Fiber optic microscope Gain 400x Test resolution 0.75 µm Output format PAL/NTSC Optical power meter Accuracy ±0.17 dB (±3%) Detector type InGaAs Φ300 µm Weight (Fiber optic microscope) 155g Working/storage temperature 20 °C to 50 °C / -30 °C to 60 °C Weight & Size 9.65 in x 7.48 in x 2.95 in (24.5 cm × 19.0 cm × 7.5 cm) Weight(overall) (4.41 lbs) 2 KG
