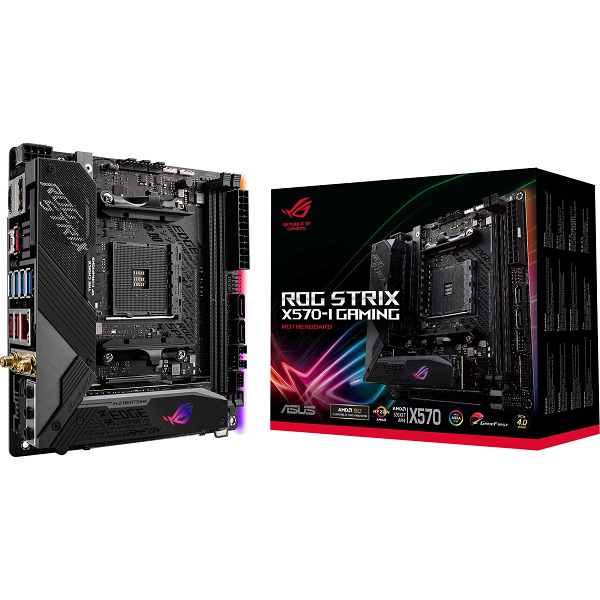

Asus Rog Strix X570-I Gaming Motherboard

Description CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list Chipset AMD X570 Memory 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * AMD RyzenTM 4000 G-Series Processors AMD RyzenTM 2000 Series Processors 2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics in AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors – Support DisplayPort 1.4 with max. resolution 8K 7680 × 4320 @60Hz Multi-VGA output support : HDMI/DisplayPort ports – Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz Expansion Slots AMD RyzenTM 4000 G-Series / 2000 Series Processors AMD Ryzen 5000 Series/ 3000 Series Desktop Processors AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) Storage AMD Ryzen 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD X570 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support LAN Anti-surge LANGuard ROG GameFirst Technology Intel I211-AT Wireless Data Network Supports channel bandwidth: HT20/HT40/HT80/HT160 Intel Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed Bluetooth Bluetooth 5.0 Audio – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. SupremeFX8-Channel High Definition Audio CODEC S1220A – Dual OP Amplifiers – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality120dBSNR stereo playback outputand113dBSNR recording input – Supports up to 32-Bit/192kHz playback *2 Audio Feature : – DTS Sound Unbound – Sonic Radar III – Sonic Studio III Sonic Studio Virtual Mixer USB Ports AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 4 x USB 3.2 Gen 2 port(s) (3 x Type-A 1 x Type-C) 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) 2 x USB 2.0 port(s) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) ROG Exclusive Features ROG Exclusive Software – RAMCache III – CPU-Z – GameFirst V Special Features 5-Way Optimization by Dual Intelligent Processors 5 – Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU – Auto Tuning, TurboV, GPU Boost ASUS EPU : – EPU AURA : – Aura Lighting Control – Addressable Gen 2 Header ASUS Exclusive Features : – AI Suite 3 – Ai Charger ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 ASUS Q-Design : – ASUS Q-Shield – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) Back I/O Ports 4 x USB 3.2 Gen 1 (blue) 3 x LED-illuminated audio jacks 1 x DisplayPort 1 x HDMI 1 x ASUS Wi-Fi Module 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x AAFP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x HS_FAN 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x PCH_FAN 1 x AAFP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x T_Sensor Connector 1 x Speaker connector Accessories 1 x AAFP Extension Cable 1 x Panel cable 2 x M.2 Screw Package User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x M.2 bracket 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card I/O Shield BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. Manageability WOL, PXE Support Disc Overwolf Anti-virus software (OEM version) WinRAR Operating System Windows 10 64-bit Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) Note *1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
