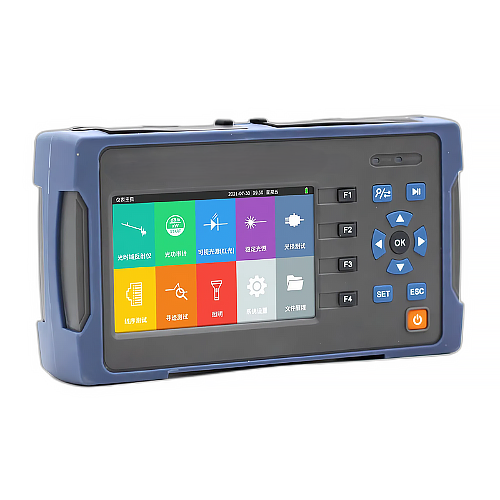

Fiber Precision Analyzer with Dual Wavelength and VFL – GAOTek

Description Overview GAOTek fiber precision analyzer with dual-wavelength and VFL is applied to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss, and input light automatic detection, automatic test by one key. The tester is compact with colorful LCD screen and, a new plastic shell design, and shock-proof and drop-proof.   Features Measurement distance: 60km. Touching screen. Test record can be saved as so format. Standard Function: OTDR/Optical Power Meter/ Optical Light Source/ Visual Fault Locator/Optic Loss/ Light.   Technical Specifications Network Bluetooth Measurement Distance 0 mi to 37.28 mi (0 to 60 km) Wavelength(nm) 1310/1550 nm 1310/1550 nm 1550 nm 1610 nm Dynamic Range 24/22 dB 26/24dB 22 dB 22 dB Measurement Distance 37.28 mi (0 km to 60 km) Type of Fiber 9/125um SM Type of Connectors FC/PC/; SC/PC (FC/APC SC/APC–Optional) Peak Value of Laser >=30 mW Dead Zone of Reflection 2.19 mi (2 m) Accuracy Distance (Reflection Event) About ± (1m 2 x 10(-4) x distance) Dead Zone of Attenuation Event 12 m Storage of Records 200 groups Visual Fault Locator（VFL） Wavelength (nm) 650 nm Output Power >=10 mW Mode CW，1Hz，2Hz Fiber type SM Optical Power Meter Measurement Range dBm -70 to 10 dBm -50 to 26 dBm Wavelength Range（nm） 800 to 1650 Calibrated Wavelength 850、1300、1310、1490、1550、1625 Resolution Linearity 0.1% Non-linearity 0.01 dBm Optical Light Source Emitter FP-LD Wavelength (nm) 1310 nm to 1550 nm Connector FC/PC（SC/ST as optional） Output Power ≥-5 dBm Output Stability(dBm) ±0.04@20℃@15 min LCD 3.97 in (10.08 cm) ,800*480pixels, IPS screen Battery 7.4V/4400mAH Lithium-ion battery, >5000 tests Work Temperature 23°F to 122°F (-5°C to 50°C) Storage Temperature 14°F to 140°F (-10°C to 60°C) Humidity 0 % to 85 % (non-condensing) Dimensions 7.09 in × 3.94 in × 1.77 in (18 cm × 10 cm × 4.5 cm) Weight(g) 16.90 oz (480 g)
