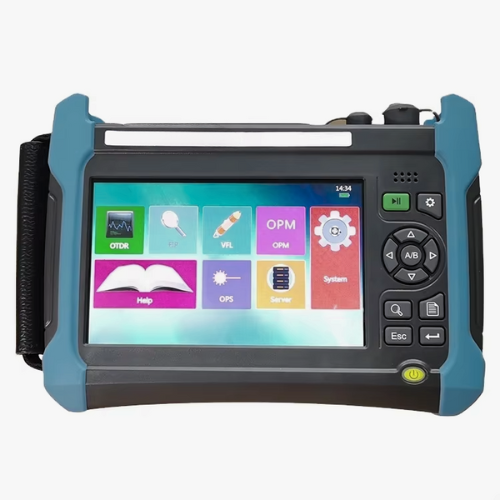

Description Overview GAOTek all-in-one OTDR for network and signal testing device supports testing for a range of single-mode (1310nm, 1550nm, 1490nm, 1625nm, 1650nm) and multi-mode (850nm, 1300nm) wavelengths, with options for customized wavelengths. It offers modules for single and multi-wavelength testing, as well as online tests. Features include a maximum dynamic range of 50dB, minimum event dead zone of 0.5m, and sampling resolution of 2.5cm for precise event location. Additional functions include a stable light source, optical power meter, visible red-light source, and fiber end face inspection. Designed to operate in temperatures from -10°C to 50°C and store in temperatures from -40°C to 70°C, it meets EMC, vibration, and shock test standards. The device has a high reliability with a 6000-hour MTBF and a 75W built-in battery for extended field use Features Maximum dynamic range up to 50dB, and 256k data sampling points; Online test of PON network Integrated mono-mode and multi-mode test; Automatic monitoring of optical communication signals File formats of Bellcore GR196 and SR-4731 supported. Technical Specifications Ranging Accuracy (Placement Error) (m) ± (0.75 sample interval 0.0025% × range) (excluding the refractivity Ranging Resolution 0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16 and 32m Test Range 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256 and 512km (mono-mode); 0.4, 0.8, 1.6, 3.2, 6.4, 16 and 32km (850nm multi-mode) Testing PW 3, 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240 and 20480ns 3, 5, 10, 30, 80, 160, 320, 640 and 1280ns (850nm multi-mode) Linearity 0.03dB/dB Loss Resolution 0.001dB Refractivity Setting Range 1.00000 to 1.99999(step: 0.00001) Display 800×480, 7-inch TFT color LCD (a capacitive touch screen in the standard configuration, and a resistive touch screen optional) Optical Output Interface (Optional) FC/UPC (standard configuration, with LC/UPC, SC/UPC and ST/UPC External Interfaces USB, Micro-USB, 10M/100M Ethernet, earphone and Micro SD Power Supply AC/DC adapter: AC100V~240V, 50/60Hz and 1.5A; DC: 17V±3V(2A) Internal Li-battery 11.1V, 6800mAh, battery operating time: 8h RH 5% to 95%, no condensation Power Consumption 10W Operating Temperature 14°F to 122°F (-10℃ to 50℃) Storage Temperature −40°F to 158°F (-40°C to 70°C) Dimensions 9.92 in × 7.09 in × 2.17 in. (25.2 cm × 18.0 cm × 5.5 cm) Weight 3.97 lb (About 1.8 kg)
