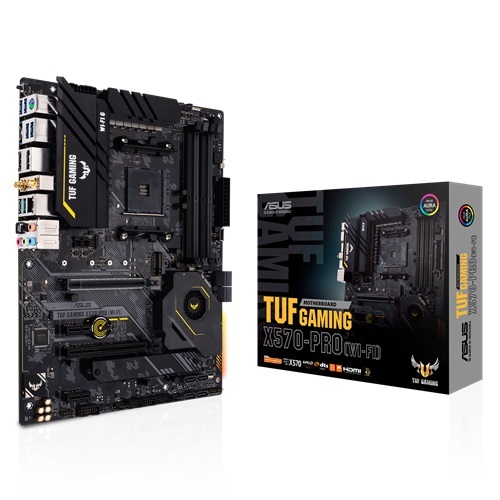

Asus Tuf Gaming X570-Pro (Wi-Fi) ATX Gaming Motherboard

Description CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors * Refer to www.asus.com for CPU support list * Due to CPU limitation, CPU cores supported varies by processors. Chipset AMD X570 Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. Graphic Integrated Graphics in AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors Multi-VGA output support : HDMI/DisplayPort   ports – Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz – Supports DisplayPort 1.2 with max. resolution 4096  x 2160  @ 60  Hz Multi-GPU Support 3rd and 2nd Gen AMD Ryzen/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors Supports AMD 2-Way Cross FireX Technology Expansion Slots AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen 4000 G-Series / 2000 Series Processors 1 x PCIe 3.0 x16 (x16 mode) AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 2 x PCIe 4.0 x1 Storage AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 LAN Intel I225-V 2.5Gb Ethernet ASUS Turbo LAN Utility TUF LANGuard Wireless Data Network Intel Wi-Fi 6 AX200 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. Audio Realtek ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : – Exclusive DTS Custom for GAMING Headsets. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. USB Ports Rear USB Port ( Total 7  ) 3 x USB 3.2 Gen 2 port(s)(2 x Type-A 1 x Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 7  ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x Type-C) 2 x USB 3.1 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Special Features ASUS TUF PROTECTION – ASUS SafeSlot: Protect your graphics card Investment – ASUS ESD Guard: Enhanced ESD protection – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI VRM: Precision control for stable power – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA : – Aura Lighting Control – Aura RGB Strip Headers – Addressable Gen 2 Header ASUS Exclusive Features : – AI Suite 3 – Ai Charger ASUS Quiet Thermal Solution : – Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink – ASUS Fan Xpert 4 ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS USB BIOS FlashBack – ASUS UEFI BIOS EZ Mode ASUS Q-Design : – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM DIY Friendly Design – Procool – SafeSlot – Digi VRM – Highly Durable components – ESD Guards Software Features ASUS Exclusive Software Armoury Crate – Aura Sync – AI Noise-Canceling Microphone AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi VRM Fan Xpert 4 EZ update ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack Button(s) 1 x ASUS Wi-Fi Module 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A USB Type-C) Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Accessories User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x TUF GAMING Sticker 1 x TUF Certification card(s) 1 x M.2 Rubber Package(s) BIOS 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WOL by PME, PXE Operating System Windows 10 64-bit Form Factor ATX Form Factor 12.0  inch x 9.6  inch ( 30.5  cm x 24.4  cm )
