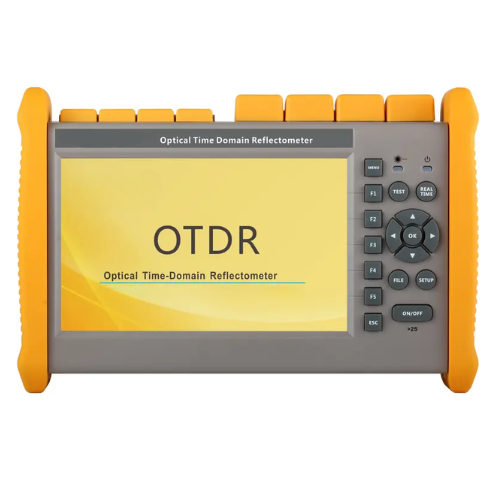

Advanced Fiber Optic Tester with Customizable Range & Multi-Wavelength – GAOTek
$53.25
$64.97
Description Features Multiple dynamic range and wavelength combinations can be customized Support pass through 1×64 splitters Pro version pass through 1×128 splitters With online light alarm function FLM (Fiber Link Map ) function, icon display fiber events Remote control on PC software is available Multi languages selection Technical Specifications Network wifi, GSM, 3G, Wired LAN, None, 4g, GPRS Built-in Power meter Yes Wavelength 1310/1550nm Dead-zone 0.8/4m Built-in VFL(Visual Fault Locater) Yes Dynamic Range 35/33dB Test mode Real time, manual automatic mode Pulse Width 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 275ns, 500ns, 1us, 2us, 5us, 10us, 20us Distance range 1,640.42 ft (500 m), 1.24 mi (2 km), 3.11 mi (5 km), 6.21 mi (10 km), 12.43 mi (20 km), 20.51 mi (33 km), 49.71 mi (80 km), 74.56 mi (120 km), 99.42 mi (160 km), 1,649.95 mi (2655 km) Sampling Resolution Min 0.05m Sampling Points Max 256,000 Linearity ≤0.03dB/dB Loss Threshold 0.01dB Distance Resolution 0.01m Loss Resolution 0.001dB IOR 1.2000 to 1.7000 Distance Accuracy ±(1m test distance×3×10-5 sampling resolution) (excluding IOR uncertainty) Memory Capacity 16G TF Card VFL 10mW，CW/2Hz OPM Calibrated wavelength：850/1300/1310/1490/1550/1625/1650nm Test range：-60 dBm to 5dBm Interface 1*RJ-45, 3*USB (Type A×2, Type B×1) Display 7-inch TFT-LCD (touch screen is optional) Battery 7.4V/5.2Ah lithium battery (with air traffic certification) Humidity ≤95% (No-condensation) Optional SC/LC adapter, Fiber microscope, Launch cable box Size 9.96 in × 6.61 in × 2.89 in (25.3 cm × 16.8 cm × 7.35 cm) Weight 3.30 lb (1.5 Kg(with battery))
