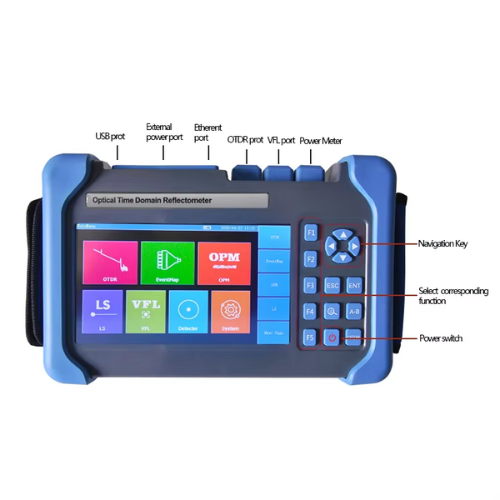

Description Overview GAOTek 7-inch high-resolution OTDR with PON and ip65 protection is a series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countryside, the measurement of optical network becomes short and dispersed; this is specially designed for that kind of application. It’s economic, having outstanding performance. It is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes it smarter and more compact and multi-purpose. Whether you want to detect link layers in the construction and installation of optical network or proceed efficient maintenance and troubleshooting, 3302F can be your best assistant. Features High-resolution true color 5inch LCD display Integrated design smart and rugged IP65 protection level outdoor enhanced 7-inch anti-reflection LCD screen PON online test module Support multi-language display and input Technical Specifications Display 7-inch (17.78 cm) TFT-LCD with LED backlight Data Storage Internal memory: 4 GB Sampling Resolution Minimum (5 cm) Sampling Point Maximum 128,000 points Linearity ≤0.05 dB/dB Distance Resolution 0.0039 in (0.01 m) Units Km, miles, feet Interface 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1) Power Supply 10V(dc), 100V(ac) to 240V(ac), 50~60Hz Battery 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating time: 12 hours Charging Time <4 hours (power off) Power Saving Backlight off: Disable/1 to 99 minutes Auto shutdown: Disable/1 to 99 minutes Data Storage Internal memory: 4GB (about 40,000 groups of curves) Operating Temperature 14°F to 122° F (-10℃ to 50℃) Humidity ≤95% (non-condensation) Storage Temperature −4°F to 167°F (-20℃ to 75℃) Accessories Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter Pulse Width Single mode: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1µs, 2µs, 5µs, 10µs, 20µs Testing Distance Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km Linearity =0.05dB/dB Scale Indication X axis: 4m to 70m/div, Y axis: Minimum 0.09dB/div Distance Resolution 0.01 m Distance Accuracy ±(1m measuring distance×3×10-5 sampling resolution) (excluding IOR uncertainty) Reflectance Accuracy Single mode: ±2dB, multi-mode: ±4dB IOR Setting 1.4000~1.7000, 0.0001 step OTDR Trace Format Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up Testing Modes Visual fault locator: Visible red light for fiber identification and troubleshooting Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2 kHz output) Field microscope probe Fiber Event Analysis Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps Reflective: 0.01 to 32dB (0.01dB steps) Fiber end/break: 3 to 20dB (1dB steps) Other Functions Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical fiber Trace overlay and comparison Dimension 9.96 in x 6.61 in x 2.89 in (25.3 cm x 16.8 cm x 7.36 cm) Weight 7.716 lbs. (3.5 kg battery included)
