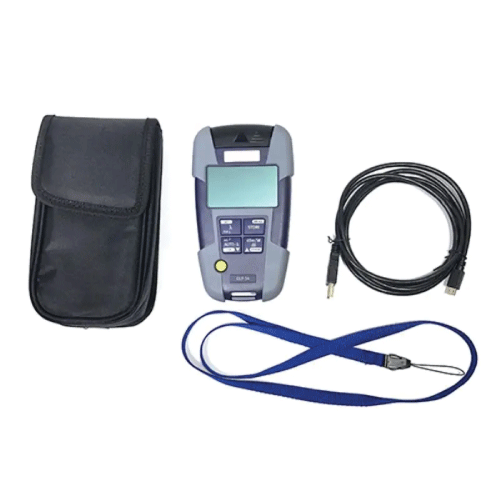

Compact Broadband Power Meter with High-Visibility Display – GAOTek
$51.9
$90.83
Description Overview GAOTek Broadband Power Meters quickly, easily, and conveniently measure optical power levels and loss in fiber networks and fit perfectly in your pocket. Easy to use for technicians at any skill level Broadband Power Meters (PM) complement, optical light sources (OLS) for insertion loss and continuity testing in multimode and single-mode networks in all environments. They offer a dedicated and cost-optimized solution for testing and troubleshooting fiber in the field. The intelligent and rugged device also includes unprecedented data storage capacity supported by result downloads to a CP or uploads to the cloud. Features Ultra-reliable German design Designed with an outdoor environment in mind Low power consumption for extended continuous use Instant On – no boot time Easy to use High-Visibility backlit graphical display with the context-sensitive softkey No setup ‘OptiChek’ measurement mode Auto-2, multi-2 mode Automatic upload of results via the Mobile Tech application 1 nm incremental wavelength settings The universal optical interface supports all 0.0984 in (2.5 mm) with an option for 0.05 in (1.25 mm) connectors Fiber Tracing detecting optical light source tone(s) Storage for > 1000 test results and PC download capability Bluetooth low energy connectivity to the Mobile Tech App 3-year recalibration period Improved protection cap USB-C interface Softkey flexibility Multiple power options (4-way) Technical Specifications Network POE, 4 g, 5G, Ethernet, FTTH Power Range -65 dBm to 10 dBm, -50 dBm to 26 dBm, 45 dBm to 13 dBm Wavelength 800 nm to 1650 nm Photo Diode InGaAs Resolution 0.01 dB, 0.001 uW Measurement Uncertainty ± 0.2 dB (± 5 %) at ref. conditions Certification CE Max. Power Level 16 dBm, 27 dBm, 15 dBm Wavelength 850 nm, 1300 nm, 1310 nm, 1550 nm, 1625 nm Wavelength Accuracy – 20 or ± 40 nm, ± 20 nm Tone Detection 270 Hz, 330 Hz, 1 kHz, 2 kHz FWHM Spectral Width < 170 nm, < 5 nm Output level -20 dBm, -3 dBm, -6 dBm Short Term Stability ± 0.02 dB Long Term Stability ± 0.05 dB Dynamic Range 20 dB Display Range 850 nm, 980 nm, 1310 nm, 1490 nm, 1550 nm, 1577 nm, 1625 nm, 1650 nm Connector FC or SC or ST interchangeable Use FTTH Dimensions 5.9 in x 3.1 in x 1.2 in (150 mm x 80 mm x 30 mm)
