Circuit Breakpoint Locator with 8km Range and 8-Hour Operation – GAOTek

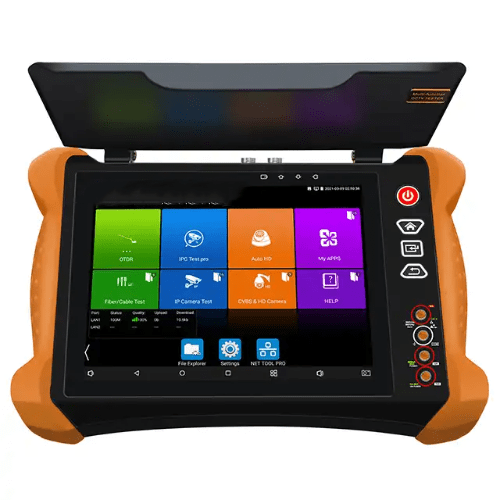

Description Overview GAOTek cable test visual fault locator 4K camera tester has Top Function 8-in (3.5 cm) IP AHD TVI CVI Analects (Closed circuit television) CCTV (Closed circuit television) IPC Tester OTDR with 4K HD Input/output and 8-inch Retina touch screen.   Features 8-in (20.32 cm) retina touch screen, 2048 pixels x 1536 pixels resolution 1310/1550 Dual wavelength, max test range77mi (130KM) Automatic analysis of various linkers/fusion points Easy analyze of various events Save and view the testing curves, support zoom and move curves Support saving curves number ≥30000pcs Support creates testing report, including curve trajectory graphs Report saved as EXCEL, PDF, or screenshots format etc.   Technical Specifications Wavelength 1310 nm or1550 nm Dynamic Angle 30 or 28 (32 or 30 optional) Pulse Width 5 ns, 10 ns, 20 ns, 40 ns, 80 ns, 160 ns, 320 ns, 640 ns, 1280 ns, 2560 ns, 5120 ns, 10240 ns, 20480 ns Testing Distance ≤93 mi (150 km) Event Blind Zone ≤2.4 m (7.87 ft) Attenuation Blind Zone ≤14 m (45.93 ft) Linearity ±0.05 dB Loss Threshold 0.05 dB Loss Resolution Ratio 0.01 dB Sampling Resolution Ratio 0.125 m to 8 m (4.92 mi to 26.2 ft) Sampling Point 32K Distance Uncertainty ± (1 m 5 x 10 – 5 x distance sampling interval) Distance Scope 111 mi (180 km) Typical Real-time Refreshing Duration 1s Measurement Duration 5 sec, 10 sec, 15 sec, 30 sec, 1 min, 2mins, 3 mins are selectable Interface Type FC-UPC
