Circle Optical Attenuator with OD3 Range & Custom Power Options – GAOTek
$69.82
$114.5

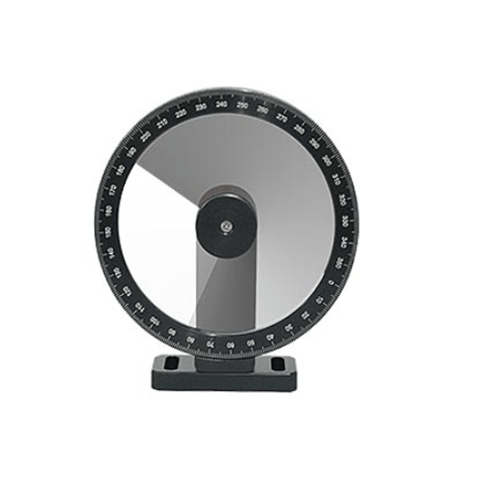

Description Overview GAOTek circle portable variable attenuator provides 3 kinds of variable attenuators for different application. The circular variable attenuator can make the optical density linearly varies around a 0° to 270° circle for measuring laser energy farthest. As for the square one, the optical density linearly varies across the length for measuring laser energy. Also, the high-power variable attenuator is available for customization. Technical Specifications Material BK7 grade A optical glass, Fused silica Optical Density Range OD0 to OD3 Outside Diameter Φ2.13 in (54 mm) ± 0.25 Linearity of Density ±5% at 632.8 nm Coating S1: Ni or Cr or Fe; S2: Broadband AR coating; incidence angle: 0° to 15° Clear Aperture >80% diameter Damage Threshold 30 W/cm2 CW Active Wavelength 400 nm to 1100 nm Applicable Power <1000 mW
