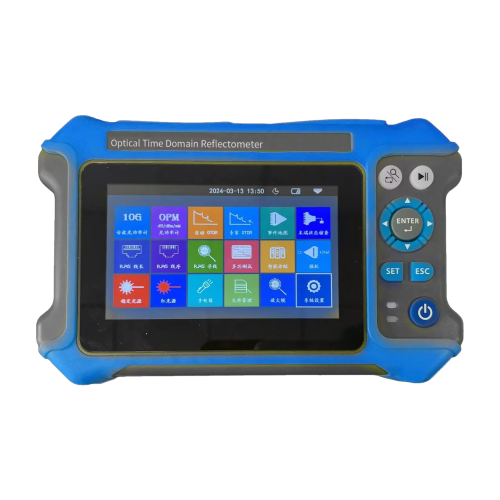

Auto OTDR Fiber Optic Tester 16-In-1 Multi-Function Meter – GAOTek

Description Features Multi-function OTDR for fiber optic testing and network maintenance 16-in-1 functions including auto OTDR, expert OTDR, event map, OPM, LS, VFL, RJ45 cable tracker, 10G OPM, and optical loss test 4.3-inch capacitive touch screen for easy operation One-key automatic testing for convenience Shock-proof, drop-proof, and USB rechargeable 4000 mAh polymer lithium battery with intelligent power management Supports FTTX and secondary backbone network testing Stores over 200,000 curves with internal and TF card storage   Technical specifications Item OTDR (Optical Time Domain Reflectometer) Type FTTH to FTTX Fiber Testing Use 16-in-1 Multi-Function Tester Functions 1310 nm to 1550 nm to 1625 nm ±20 nm Wavelength G.652 Single-Mode Fiber Fiber Type 28 dB to 26 dB Dynamic Range 3 m Event Blind Zone 8 m Attenuation Blind Zone 16.4 ft to 49.7 mi (5 m to 80 km) Test Range 5 ns to 10 μs Pulse Width 0.05 m to 8 m Sampling Resolution 16k to 128k Sampling Points ±(3.28 ft Sampling Interval 0.005% × Test Distance) Ranging Accuracy ±0.2 dB/dB Loss Accuracy ±3 dB Reflection Accuracy Internal: ≥600; External: TF Card Data Storage Class II Laser Safety Level SOR Standard File Format File Format FC/UPC (Interchangeable SC or ST) Connector 14 °F to 104 °F (-10 °C to 40 °C) Temperature Operating -4 °F to 158 °F (-20 °C to 70 °C) Temperature Storage 0.77 lb (350 g) Weight Not specified
