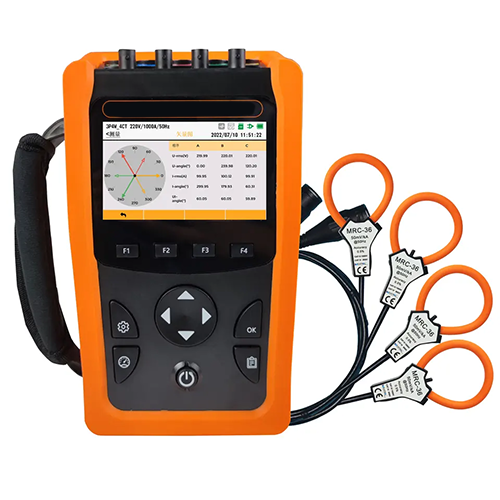

Advanced Three-Phase Power Quality Analyzer with 4-Inch Display – GAOTek
$68.96
$101.37
Description Overview This handheld three-phase power quality analyzer, externally connected with open type Rogowski coil or voltage type CT, can realize no dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering tests as well as the inspection and maintenance of distribution system. Features Superlight current sensor Safe and Easy installation High definition 4-inch IPS display Support Chinese, English, and multilingual display Graphs: waveform, vector diagram, and histogram display Technical specifications Current sensor Rogowski coilVoltage-output current clamp, 333 mV CTs Voltage access Direct accessConnected through voltage transformer Storage Type TF card Capacity 32 GB Data export U disk export (U disk file is FAT32 system) Communication Interface RJ45- Ethernet Communication Protocol Modbus-TCP Power Supply 5 V DC, 2A Battery Rechargeable lithium battery, specification 18650, 2 pcs, capacity about 4000 mAh Display 3.97 inch IPS display
