Advanced Reflectometer with 160km Range & High Speed Testing – GAOTek

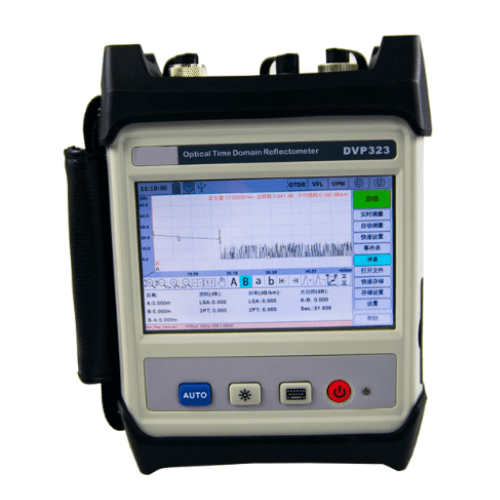

Description Overview GAOTek reflectometer has a full-touch screen optical time-domain reflectometer specifically designed for the installation and maintenance testing of broadband power grids and telecommunications networks. Humanized design, light and durable, simple and stable to use, greatly improve testing efficiency.   Features 7 cm (5 in) TFT colorized LCD for vibrant visual display Laser adapter options: FC or PC, SC or PC (optional) USB interface for versatile connectivity Built-in rechargeable Li-ion battery with > 8 hours working time AC input: 100 V to 240 V, DC output: 12.0 V, 2 A   Technical Specifications Wavelength 1310 nm ± 20 nm or 1550 nm ± 20 nm Dynamic Range 34 to 32 Event Dead Zone < 9.84 ft (3 m) Attenuation Dead Zone 16.40 ft to 99.41 mi (5 m to 160 km) Attenuation Accuracy ±0.05 dB Loss Limit (dB) 0.01 dB Loss Resolution (dB) 0.001 dB Sampling Points 128,000 Data Storage 3,000 items Pulse Width (ns) 5 n to 20 μs (5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs) Measurement Time User-defined (smart link), with real-time measurement function Distance Accuracy (m) ± 3.25 ft (1 m 0.001 % × range sampling resolution) LCD type 5 in (12.7 cm) TFT colorized LCD Laser adapter FC or PC, SC or PC (option) Interface USB Battery Built-in rechargeable Li-ion battery charging time <4 hours working time >8 hours Power AC input: 100 V to 240 V, 600 mA, 50 Hz or 60 Hz DC output: 12.0 V, 2 A Operating temperature 32 °F to 104 °F (0 ℃ to 40 ℃) Storage temperature: – 68 °F to 158 °F (20 ℃ to 70 ℃) Relative humidity <80% Weight <2.20 lb (1 kg) Dimensions (mm) 7.87 in x 4.96 in x 2.44 in (200 mm x 126 mm x 62 mm)
