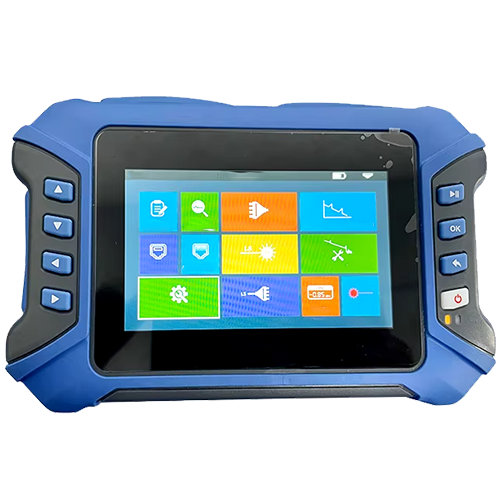

Advanced OTDR with USB-C, Wide Range & Long Battery Life – GAOTek
$66.08
$100.44
Description Technical Specifications Wavelength 1310nm/1550 nm Dynamic Range 26dB/24dB Event Map Available Power Meter Built-in Laser Source Built-in Ethernet Cable Testing Available iOLM Available Event Blind Zone 2.5 m ATT Blind Zone 8 m Test Range 500m/lkm/2km/4km/8km/16km/32km/64km/100 km Pulse Width ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/lμs/2μs/3μs/5μs/8μs/10μs/20μs Ranging Accuracy ± (lm Sample interval 0.005%XTest distance) Linearity ≤ 0.05dB/dB Sample Points 0.05 m to 8 m Loss Resolution 0.001 dB Loss Threshold 0.20 dB Range Resolution 0.001 m Refractive Index 1.00000 to 2.00000 Reflection Accuracy ±3dB File Format SOR Standard File Format Loss Analysis 4-point method /5-point method Laser Safety Level Class III Connector FC/UPC (Interchangeable SC, ST) Refresh Rate 3Hz (Typ.) Multitasking Support Built-in Optical Power Meter Wave Range 800 nm to 1700 nm Calibration Wave 850/980/1300/1310/1490/1550/1625/1650nm Test Range -70 dBm to 10 dBm/-50 dBm to 26d Bm Resolution 0.01dB Uncertainty ±5% Frequency Identification CW/270/330/lk/2kHz (Use inner LS) Connector Universal FC/SC/ST Wave Recognition Support Built-in VFL Wavelength 650nm ± 20nm Output Power ≥10mW Mode CW/1Hz/2Hz Connector FC/UPC (InterchangeableSC, ST) Laser Safety Level Class III Built-in Laser Source Wavelength Consistent with OTDR Laser Type FP-LD Power ≥-5dBm Stability CW, ±0.5dB/15mir) (Afterl5mln of preheating) Connector FC/UPC (Interchangeable SC, ST) Mode CW/270Hz/330Hz/1kHz/2kHz Wave Recognition Support Optical Attenuation Test Function Wavelength Consistent with LS Insertion Loss Test Support RJ45 Cable Tracker Mode Digital tracking Distance ≥ 300m Online/Line Pair Tracking Support RJ45 Cable Length Testing Test Distance ≥ 300m Others Specification Display 4.3 inches800X480 IPS TFT-LCD,Multi touch capacitive touch screen Power Supply AC/DCadapter: input:100V to 240V,50/60Hz,0.6A output:5V>2A, Lithium battery:3.7V>4000mAh Battery Working Continuous test>12 h Data Storage Internal storage:8GB, ≥ 20 thousand curves Data Interface USB Type C Relative Humidity 0 % to 95% non-condensing Working Temperature 14°F to 122°F (-10°C to 50°C) Storage Temperature -40°F to 158°F (-40°C to 70°C) Size 6.81 in × 4.29 in × 1.77 in (17.3 cm × 10.9 cm × 4.5 cm) Weight 1.10 lb (<0.5 kg (Battery included))
