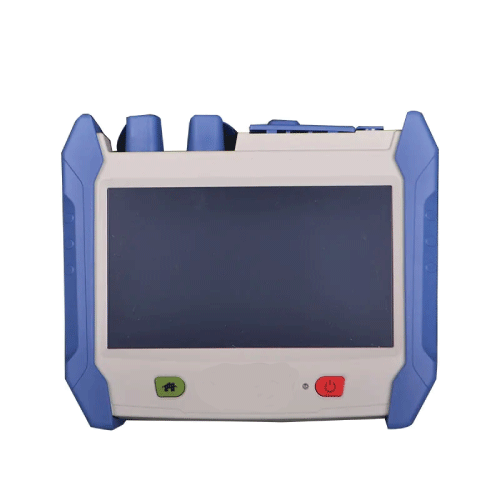

Description Overview GAOTek Optical Fiber Power Tester Meter marks a giant leap forward in fiber-optic measurement performance and utility. Featuring intuitive touchscreen controls, a modular platform, real-time data analysis, and more, the device is the ideal test instrument for constructing, deploying, maintaining, and authenticating FTTH networks and verifying access networks. Multiple models and configuration options ensure your unique measurement needs are covered. Dual or multiple wavelengths from 28 dB to 45 dB are available. Features 7 in, 800 x 480 LCD touchscreen places power and convenience at your fingertips 62 ft (0.8 m) event dead zone, 9.84 ft (3 m) attenuation dead zone; excellent short-distance performance Broad dynamic range coverage 28 dB to 45 dB 2 in (5 cm) resolution Intelligent analysis of events Excellent stability and repeatability “Fiber Pass” intelligent analysis feature Multiple options for your measurement need, including VFL, power meter, light source, optical fiber microscope, QAM analysis module Complete user data ports; support LAN, USB, SD, & more The results support a variety of analysis functions, such as ORL, 4 pt, define section etc. Technical Specifications Wavelength 1310 nm, 1550 nm, 1625 nm, 1650 nm, 1490 nm Wavelength Accuracy ± 20 nm Dynamic 30 dB, 28 dB, 34 dB, 32 dB, 36 dB, 37 dB, 39 dB Event Dead Zone ≤ 5 ft (≤ 1.5 m), ≤ 2.62 ft (≤ 0.8 m) Attenuation Dead Zone ≤ 19.7 ft (≤ 6 m), ≤ 16.4 ft (≤ 5 m), ≤ 13.12 ft (≤ 4 m) Distance Range 0.062 mi, 0.25 mi, 0.932 mi, 1.864 mi, 3.728, 7.456 mi, 15.534 mi, 31.068 mi, 62.137 mi, 124.274 mi, 248.548 mi (100 m, 400 m, 1.5 km, 3 km, 6 km, 12 km, 25 km, 50 km, 100 km, 200 km, 400 km) Sampling Resolution 0.16 ft to 42 ft (0.05 m to 12.8 m) Sampling Point 256000 Distance Accuracy ± (2.13 ft (0.75 m) 0.005 % x Distance Sampling Resolution) Pulse Width 3 ns to 20 μs Distance 9.84 ft to 99.4 mi (3 m to 160 km) Distance Resolution 0.164 ft (0.05 m) MOQ 1 PCS Certification CE Loss Threshold 0.01 dB Loss Resolution 0.001 dB Pulse Width 3 ns, 5 ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 µs, 2 µs, 5 µs, 10 µs, 20 µs Measurement Time Range 5 sec to 5 min, real time Memory Capacity > 10,000 OTDR traces, exportable to USB or Computer Display 7 in (178 mm) 800 × 480 dot matrix TFT touch screen Interface USB 2.0 × 2, RJ45 × 1, LAN× 1 (10 M or 100 M), TF × 1 (Max, 64 GB) Battery Autonomy 11 hrs of measurement usage (Max) Language Chinese, English, Spanish, Portuguese, French, Russian, Italian (German, Korean and Arabic are optional) Dimension 8.11 in x 6.73 in x 2.95 in (206 mm x 171 mm x 75 mm) Weight (4.41 lb) 2 kg
